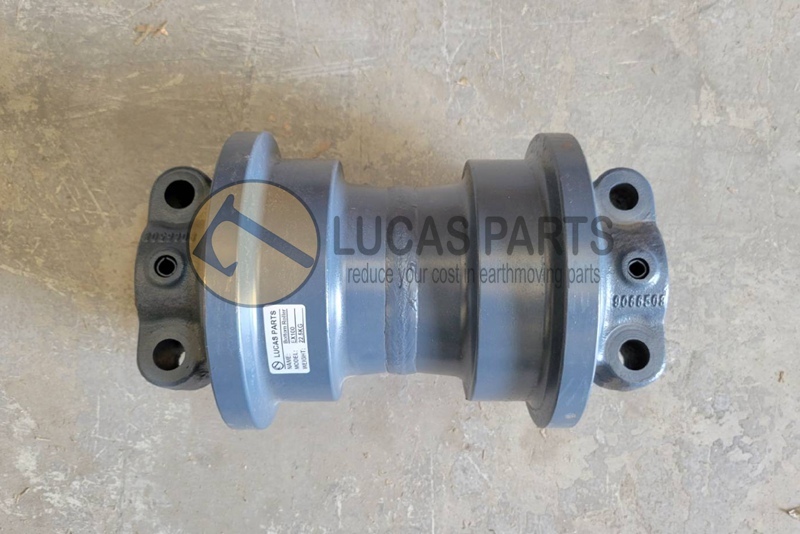

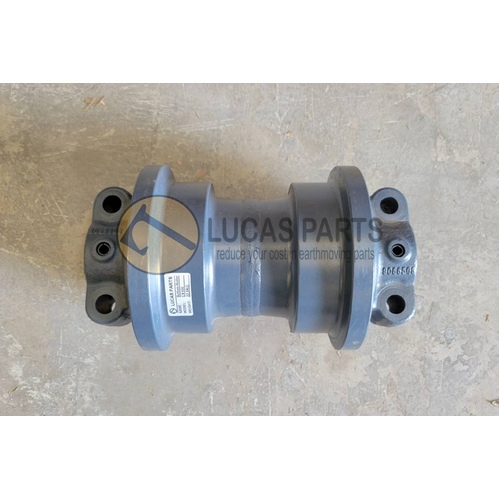

Bottom Roller EX100 EX120 EX135 ZX135 ZX120 ZX110 TB1140 90mm*250mm

Compatible with the following equipment:

FIAT-HITACHI

• EX135

FIAT-KOBELCO/NEW HOLLAND

• E135 EVOLUTION 1UP    E135SR 1UP    E145     E145B
• FK135


HITACHI

• EX100-1     EX100-2     EX100-3     EX120
• EX120-1     EX120-5     EX130H-5     EX135
• EX135U     EX135VR     ZAXIS110     ZAXIS120
• ZAXIS135     ZX110     ZX120     ZX130H
• ZX130K   ZX130LCN   ZX135US  ZX130-3 ZX130-5

JCB

• JS110 AUTO 68000-68999    JS115 AUTO 68000-68999

JOHN DEERE

• 110     120     120C     120D 037091 AND UP
• 120D UP TO 037090    135C RTS     490E

O-&-K-TEREX

• RH4.6


TAKEUCHI

• TB1140


CROSS REFERENCE (Original codes):

BERCO    FT3602
BERCO    SI745
FIAT-HITACHI    71401427
FIAT-KOBELCO/NEW HOLLAND    71401427
HITACHI    9092522
HITACHI    9114679
HITACHI    9132600
HITACHI    9190194
ITM    A7610000M00
JCB    331/49770
JOHN DEERE    AP34655
JOHN DEERE    AT166891
MECALAC    5231047
MECALAC    5231103
TELCO-TATA    9TD01365
TELCO-TATA    TD01365
VPI    VAT166891V

Lucas Parts Bottom Roller/Track Rollers are manufactured in highest quality hardened steel with the heavy duty duo-cone seals, and advanced heat treatment processes to increase robustness, guarantee high resistance and optimize wear performance in any environment. This maintenance free Bottom Roller shaft is induction hardened with high surface finishing quality, in order to resist a heavy radial and axial loads and in the meantime to make sure an adequate internal oil lubrication in the toughest conditions.

Lucas Parts undercarriage product serves both the heavy equipment and industrial markets with rubber track machinery such as Excavators,Bulldozer,  Mini Excavators, Compact Track Loaders, Mini Skid Steers, and Mini Dozers. We offer one of the most dependable complete range of Rollers, Drive Sprockets, Idler Wheels, Track Guide,Rubber Track, Steel Chain in the industry.

All undercarriage components are backed by a one year product warranty.

If you can't see what you are looking for, please get in touch with us, as we are constantly adding to our product range.
