SKU: B25X35X35M

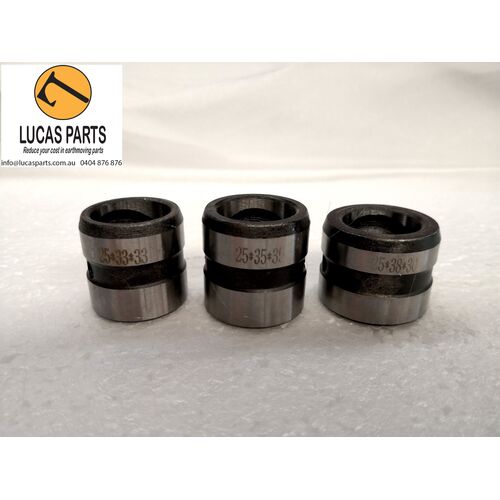

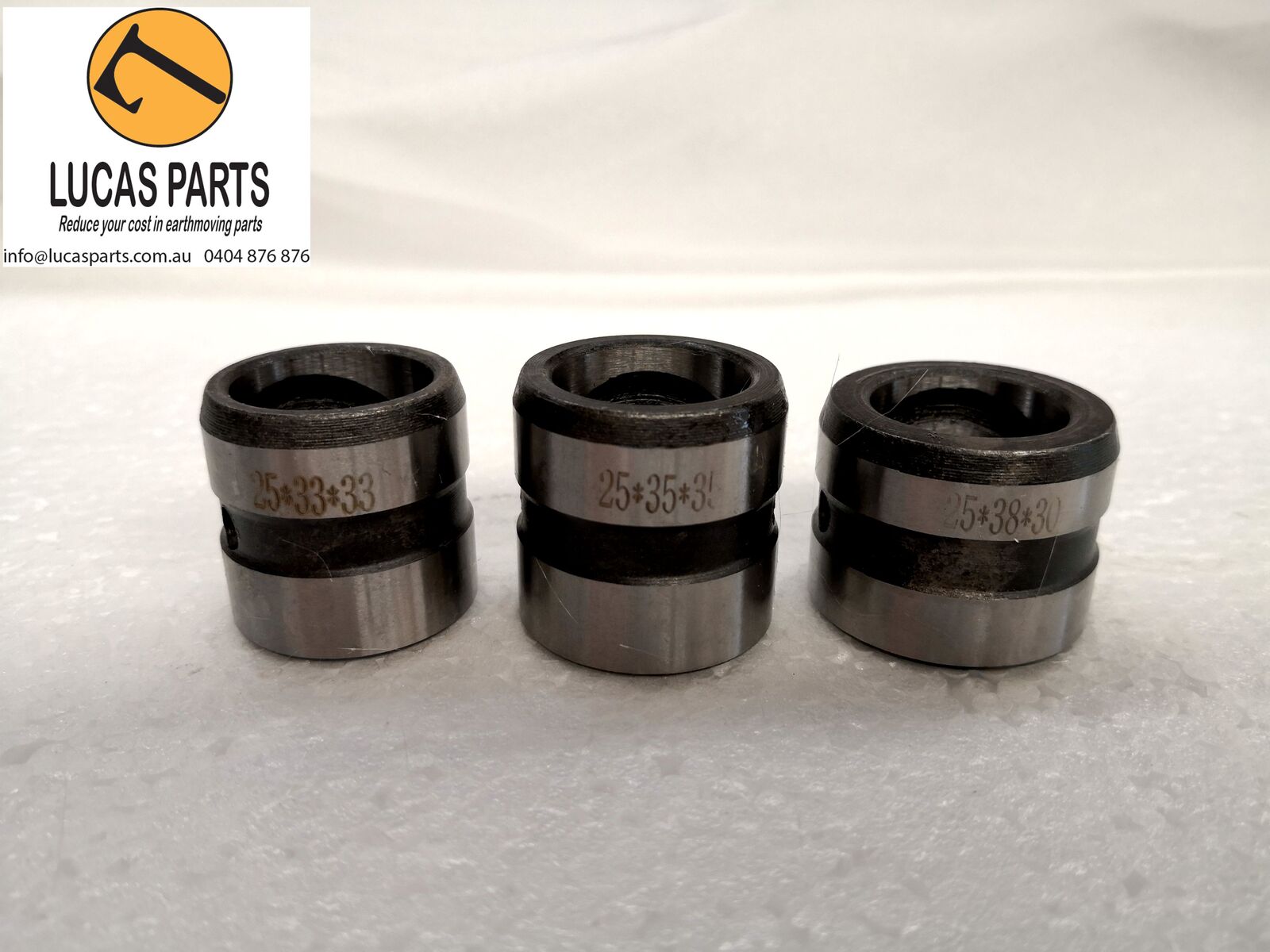

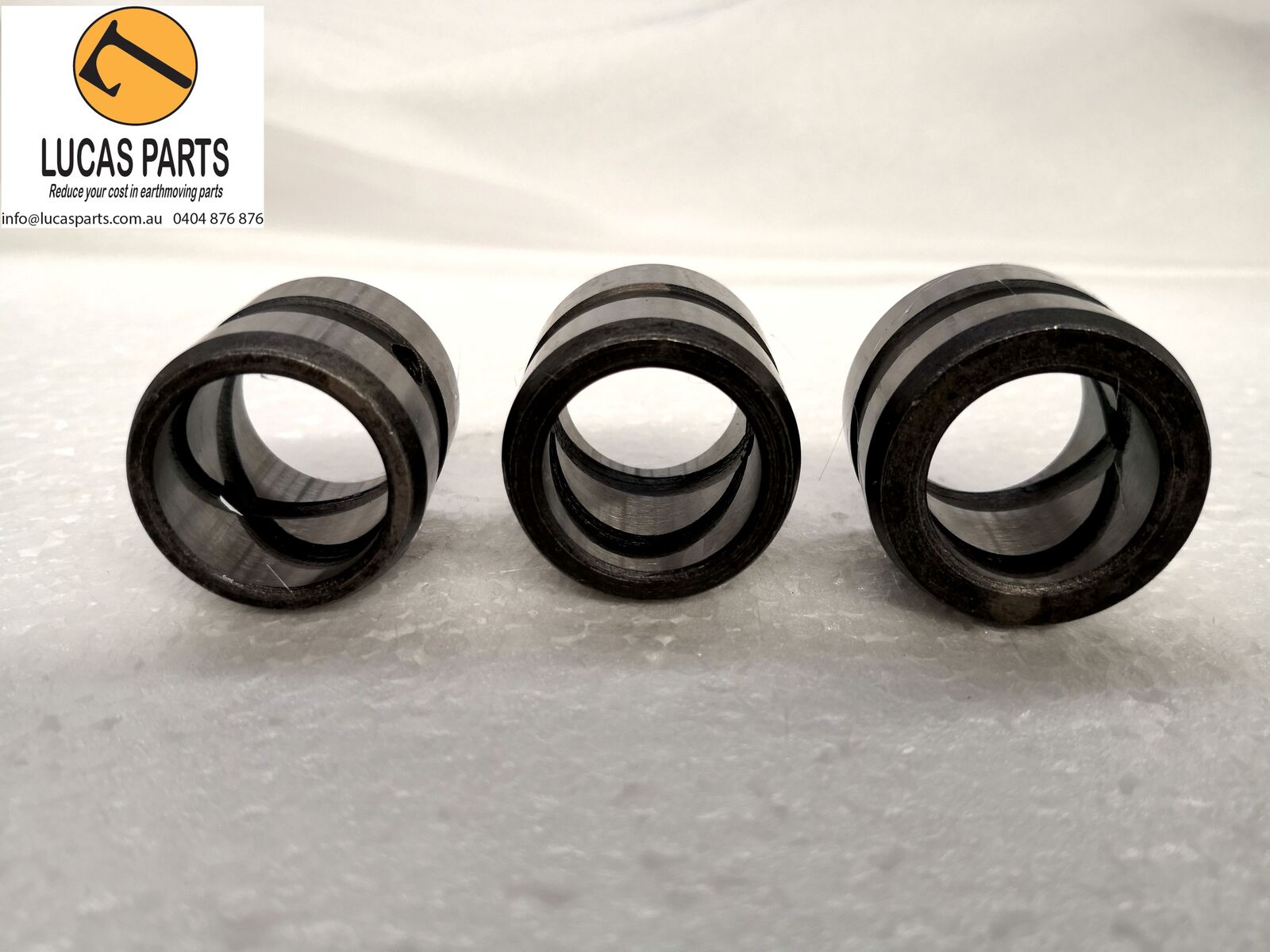

Bush 25*35*35mm ID*OD*L

$30.00



Description

Pin-and-Bush-Location-Diagram



Size: I.D: 25mm x O.D: 35mm x Length: 25mm













Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our bushes are heat treated and material matched for maximum service life. Made from 40Cr steel, quenching depth from 1.5-2.8mm and hardness is HRC 48-52.

Specifications

  • Size: I.D: 25mm x O.D: 35mm x Length: 25mm
  • Material: 40Cr Steel.
  • Full- heat Treatment:
  1.             Hardness of Bush:HRC 48-52.
  2.             Hardness of Surface Bush: HRC52-55
  3.             Quenching Depth:1.5-2.5mm



SKU B25X35X35M
Brand Lucas Parts
Shipping Weight 0.1000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.001500000m3
Unit Of Measure ea
