SKU: B30X38X40M

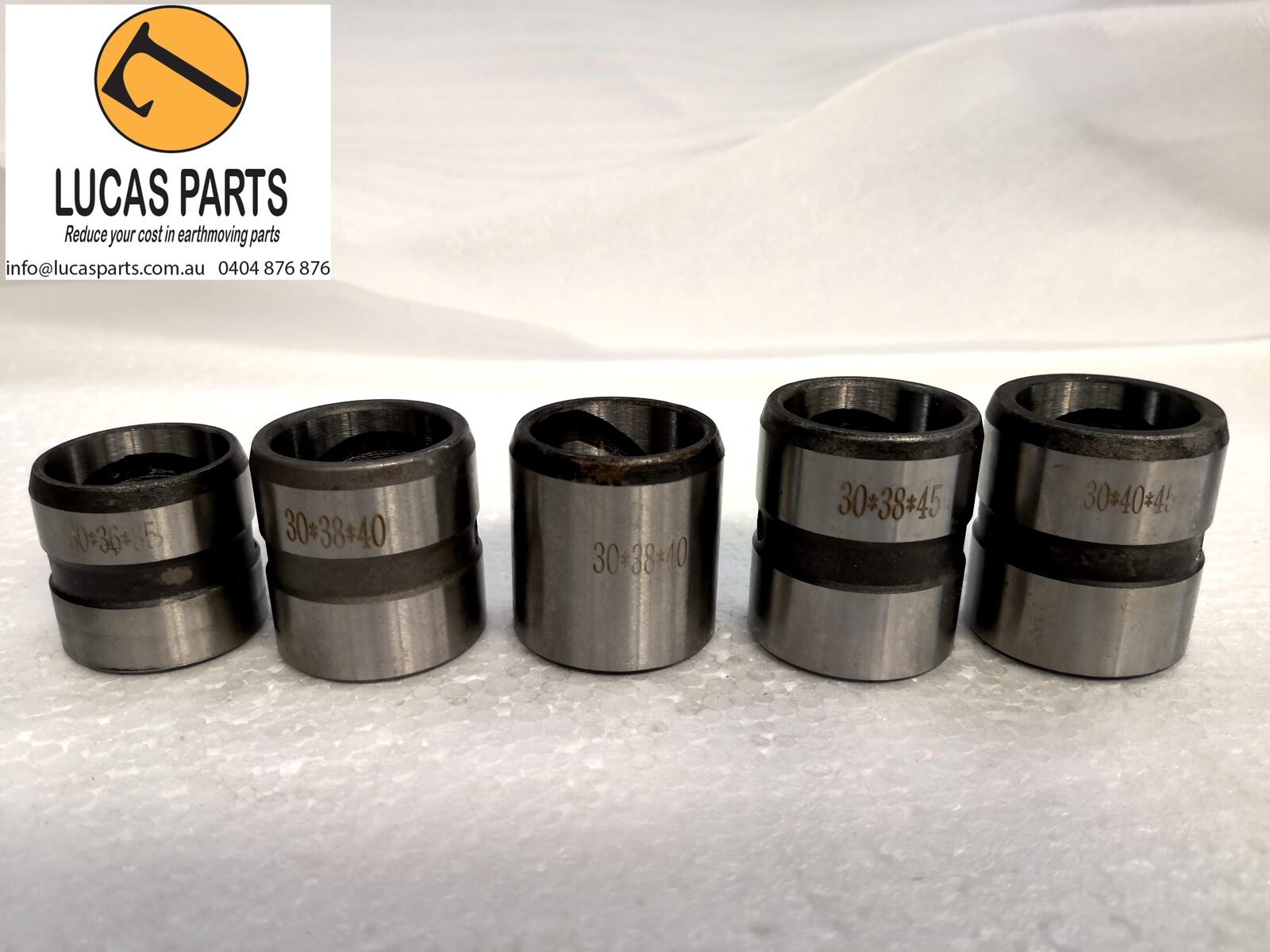

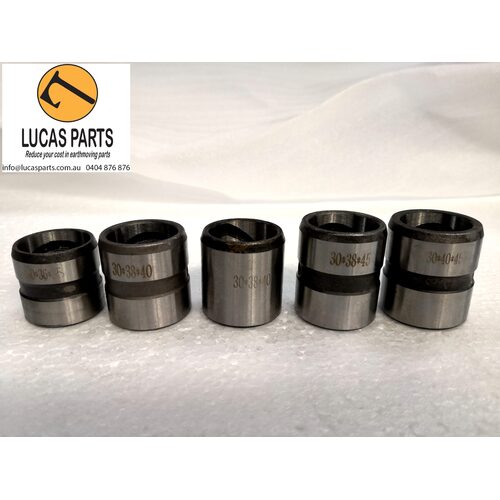

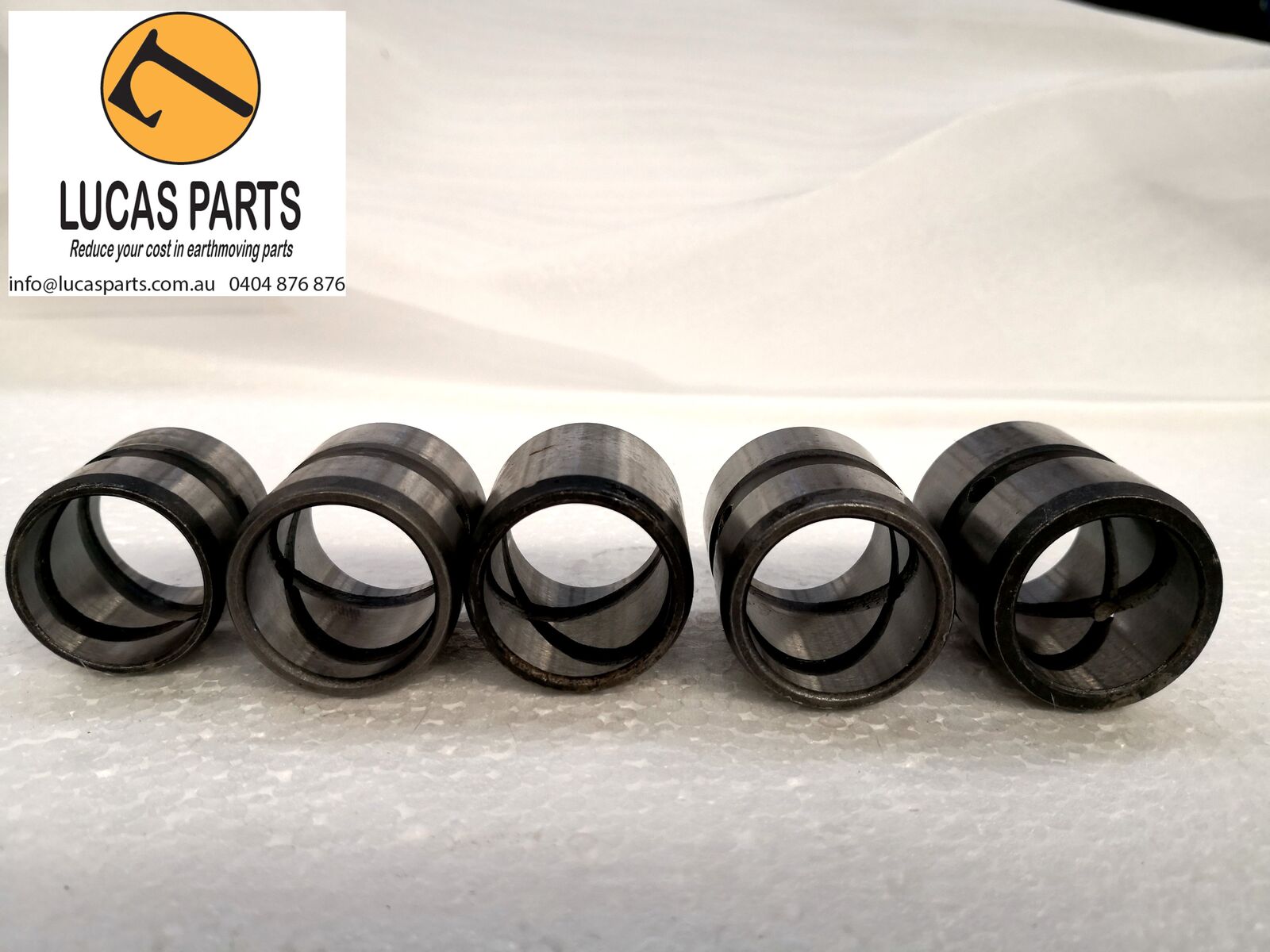

Bush 30*38*40mm ID*OD*L KX36-3 KX41-3 U15-3 U17-3 (P10)

$40.00



Description

Pin-and-Bush-Location-Diagram



Size: I.D: 30mm x O.D: 38mm x Length: 40mm

Applications:

  • Kubota Diggers:  KX36-3, KX41-3, U15-3, U17-3 at position 10
  • JCB Diggers:  8008 CTS, 8010 CTS, 8014 CTS, 8014, 8016 CTS, 8016 Super, 8016, 8018 CTS, 8018 CTSAG, 8018 CTSDL, 8018 Super, 8018, 8020 CTS, 8020, 8020CTS
  • JCB Backhoe Loaders: 1CX CABLEMASTER, 1CX HI FLOW SERVO, 1CX HI FLOW, 1CX SERVO, 1CX TRACKED HI FLOW SERVO, 1CX TRACKED HI FLOW, 1CX TRACKED SERVO, 1CX TRACKED, 1CX









Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our bushes are heat treated and material matched for maximum service life. Made from 40Cr steel, quenching depth from 1.5-2.8mm and hardness is HRC 48-52.

Specifications

40Cr steel is alloy structural steel, carbon content is 0.37-0.45%,0.8-1.1% chromium, 1000 Mpa tensile strength, yield strength is 800 Mpa; it generally uses in parts which can be loaded with large force.

SKU B30X38X40M
Brand Lucas Parts
Shipping Weight 0.3000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.001500000m3
Unit Of Measure ea
