SKU: B45X55X30M

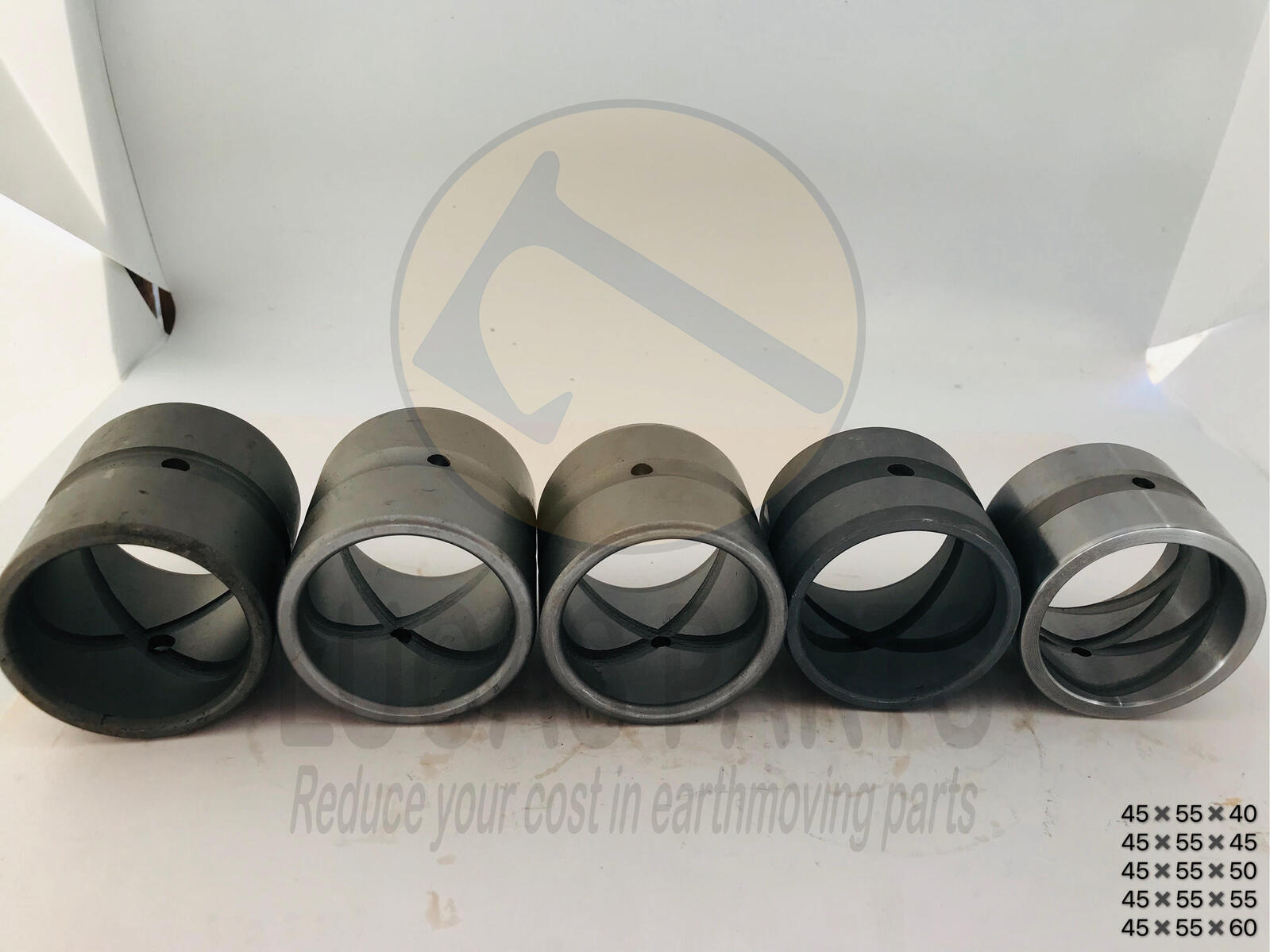

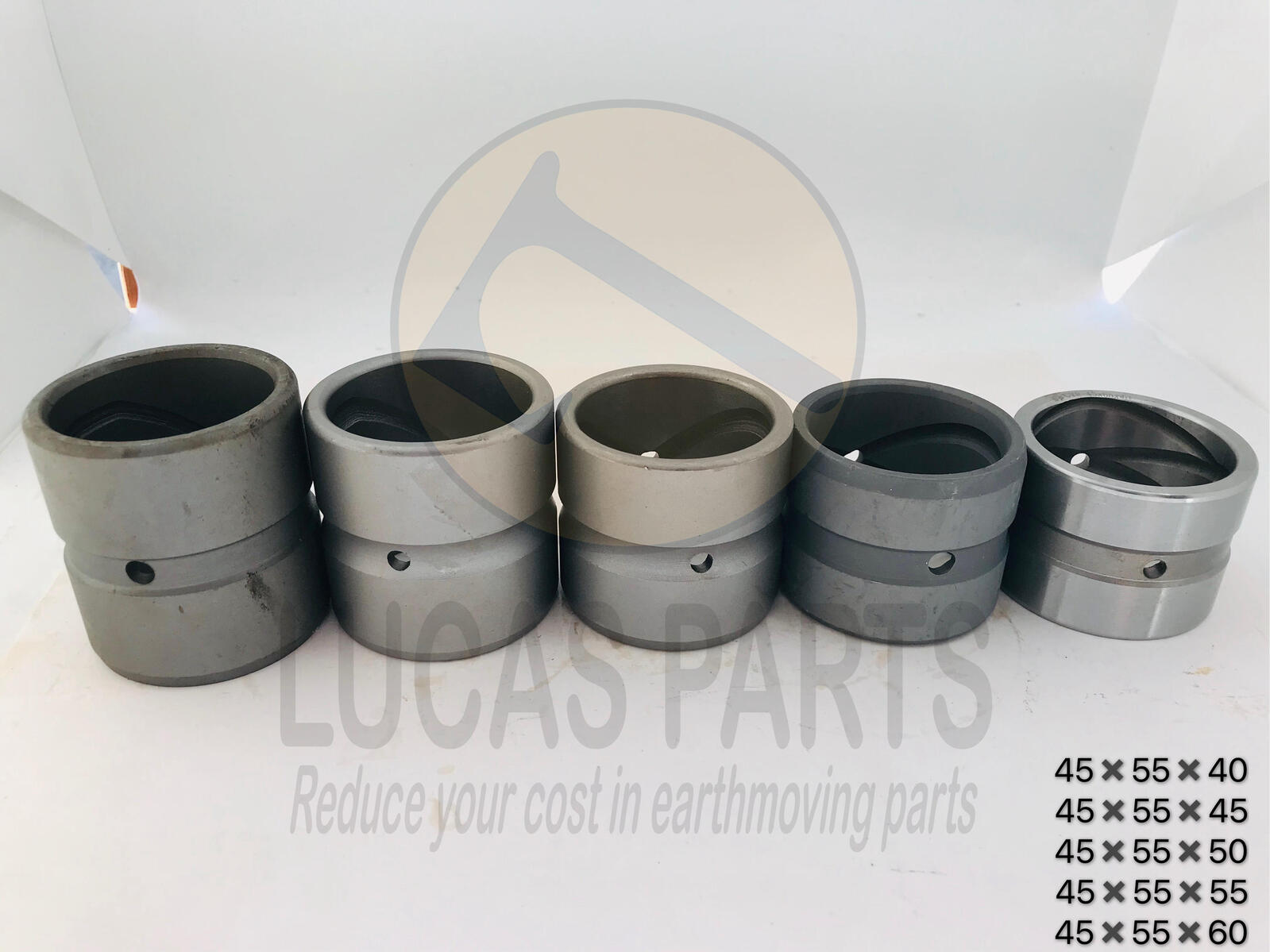

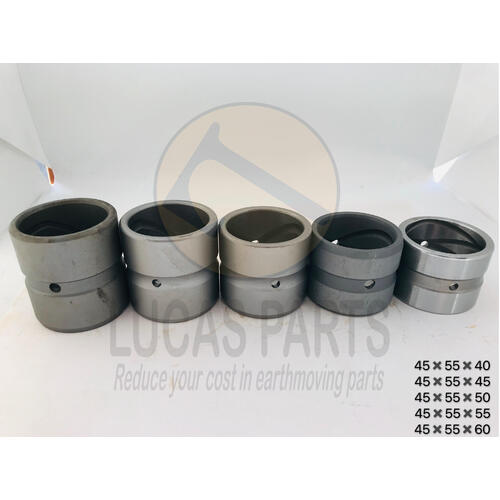

Bush 45*55*30mm ID*OD*L KX057-4 U55-4 (P13) Slew Ram Bush PN RD451-66370 CAT303CR Boom

$40.00



Description



Kubota part number: RD451-66370  RD45166370

Pin-and-Bush-Location-Diagram







Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our bushes are heat treated and material matched for maximum service life. Made from 40Cr steel, quenching depth from 1.5-2.8mm and hardness is HRC 48-52.

Specifications

40Cr steel is alloy structural steel, carbon content is 0.37-0.45%,0.8-1.1% chromium, 1000 Mpa tensile strength, yield strength is 800 Mpa; it generally uses in parts which can be loaded with large force.

SKU B45X55X30M
Brand Lucas Parts
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.001500000m3
Unit Of Measure ea
