SKU: B45X55X50M

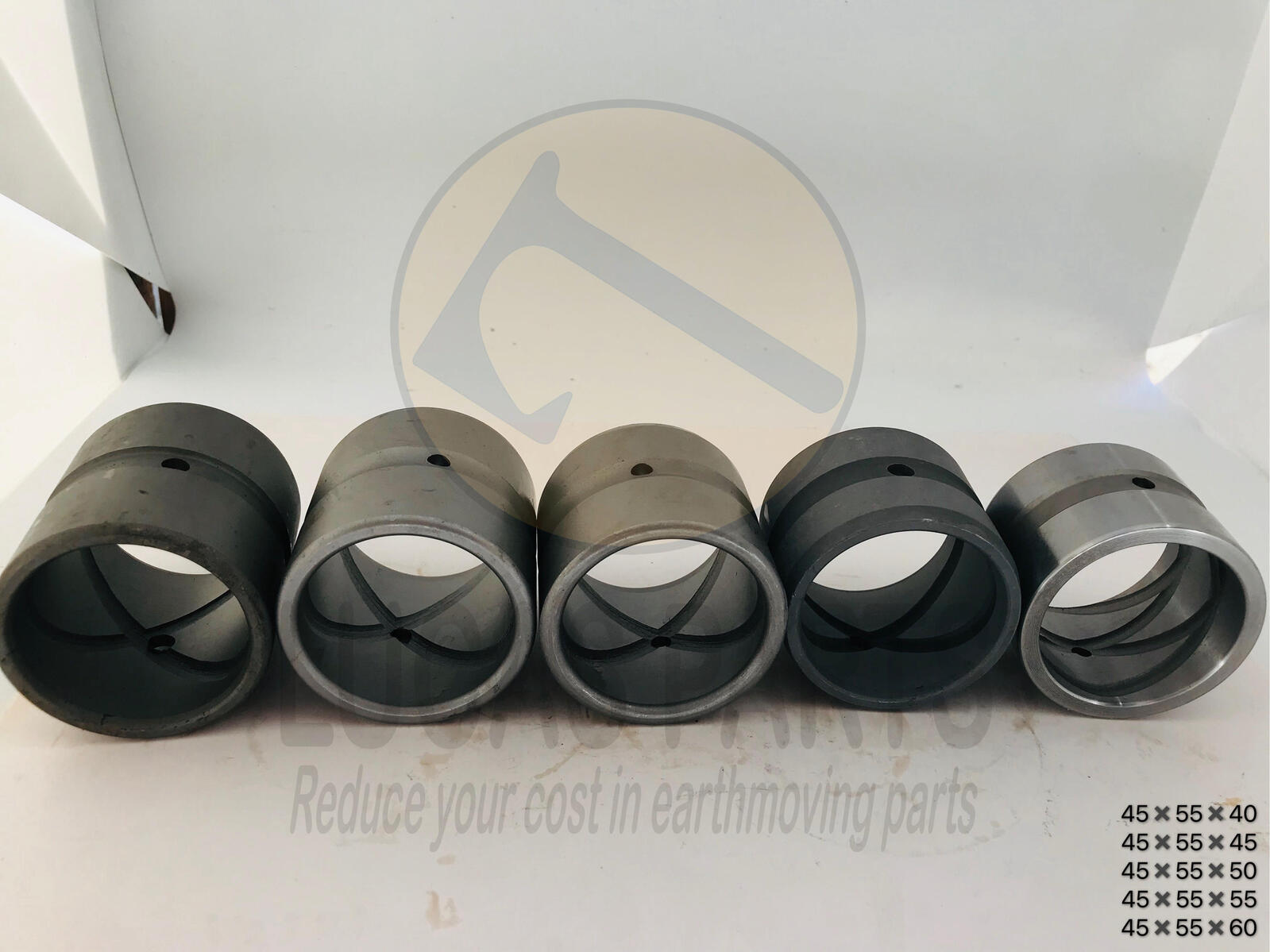

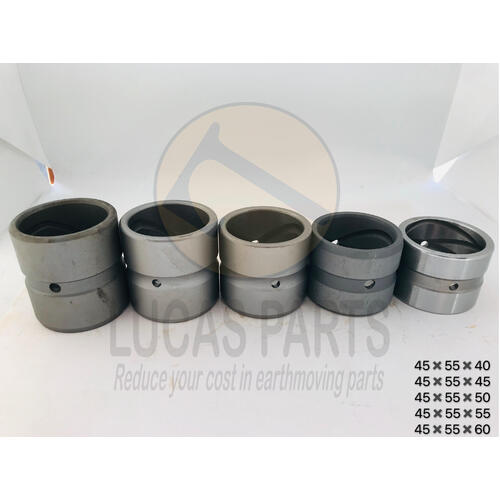

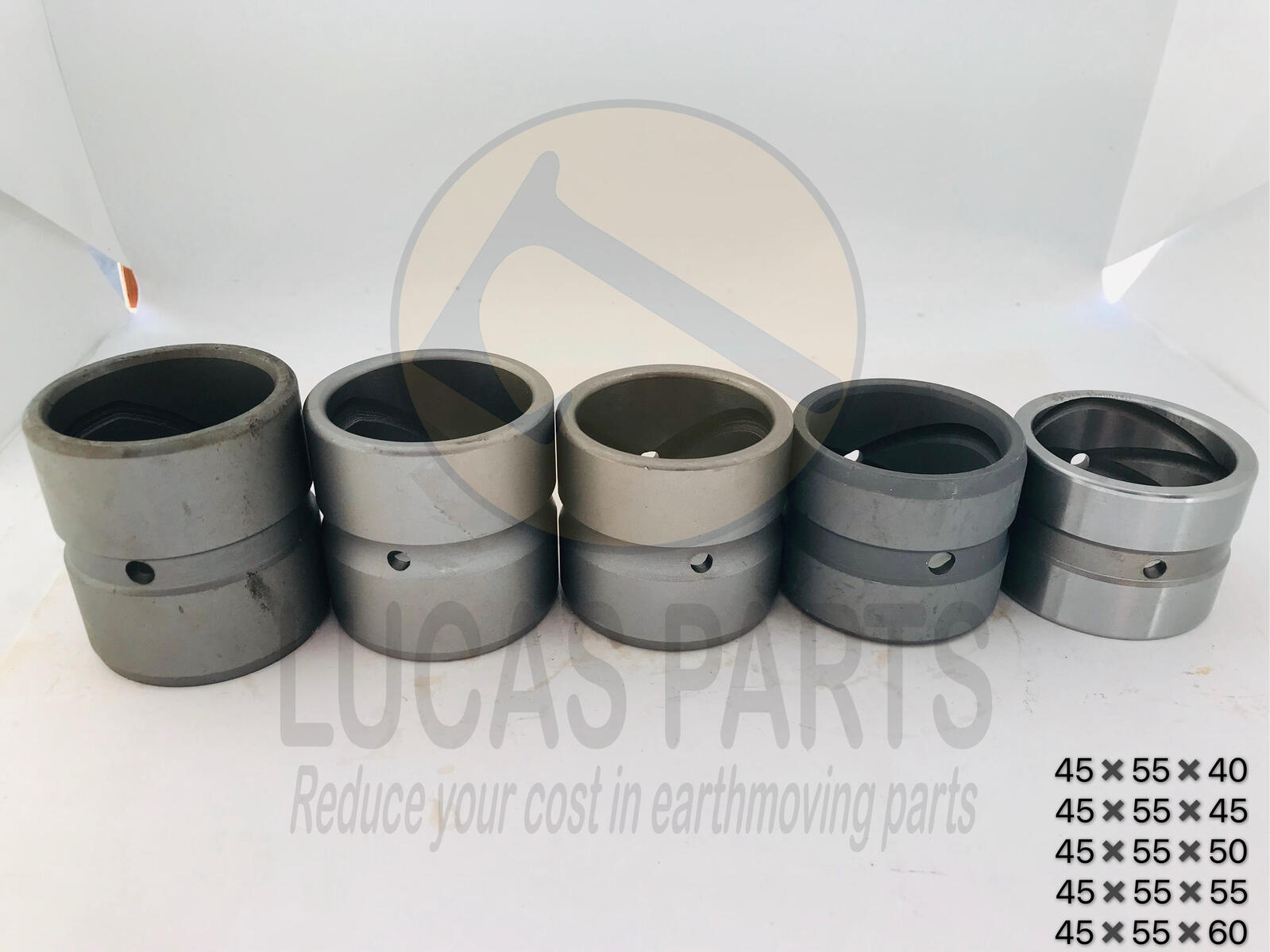

Bush 45*55*50mm ID*OD*L KX057-4 VIO45 VIO50 VIO55 (P10a) U55-4 (P8 P10a P11) PN RD451-66630 R60 PC40 CAT307 308 PN 218-5429

$42.00



Description

Compatible with the following equipment:

CATERPILLAR

  • MINI HYDRAULIC EXCAVATOR
  • 307 308 307.5 307E 307E2 308.5
  • 308D 308E 308E CR 308E SR 308E2
  • 308E2 CR 308E2 SR 308E2CR 308E2SR 309
  • EXCAVATOR
  • 307C 307D 308C

KUBOTA

  •  KX057-4
  • U55-4

YANMAR

  • VIO45
  • VIO50
  • VIO55

Caterpillar part number:  218-5429  2185429

Kubota part number: RD451-66630 RD45166630 RD551-67540 RD55167540

Yanmar part number: 172151-72670 172151-72670

Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our bushes are heat treated and material matched for maximum service life. Made from 40Cr steel, quenching depth from 1.5-2.8mm and hardness is HRC 48-52.

Specifications

40Cr steel is alloy structural steel, carbon content is 0.37-0.45%,0.8-1.1% chromium, 1000 Mpa tensile strength, yield strength is 800 Mpa; it generally uses in parts which can be loaded with large force.

SKU B45X55X50M
Brand Lucas Parts
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.001500000m3
Unit Of Measure ea
