SKU: B45X55X60M

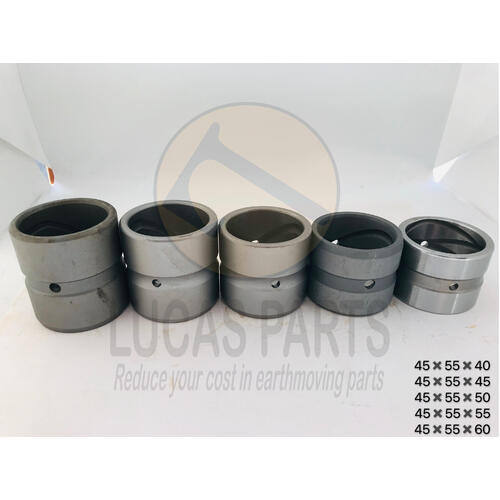

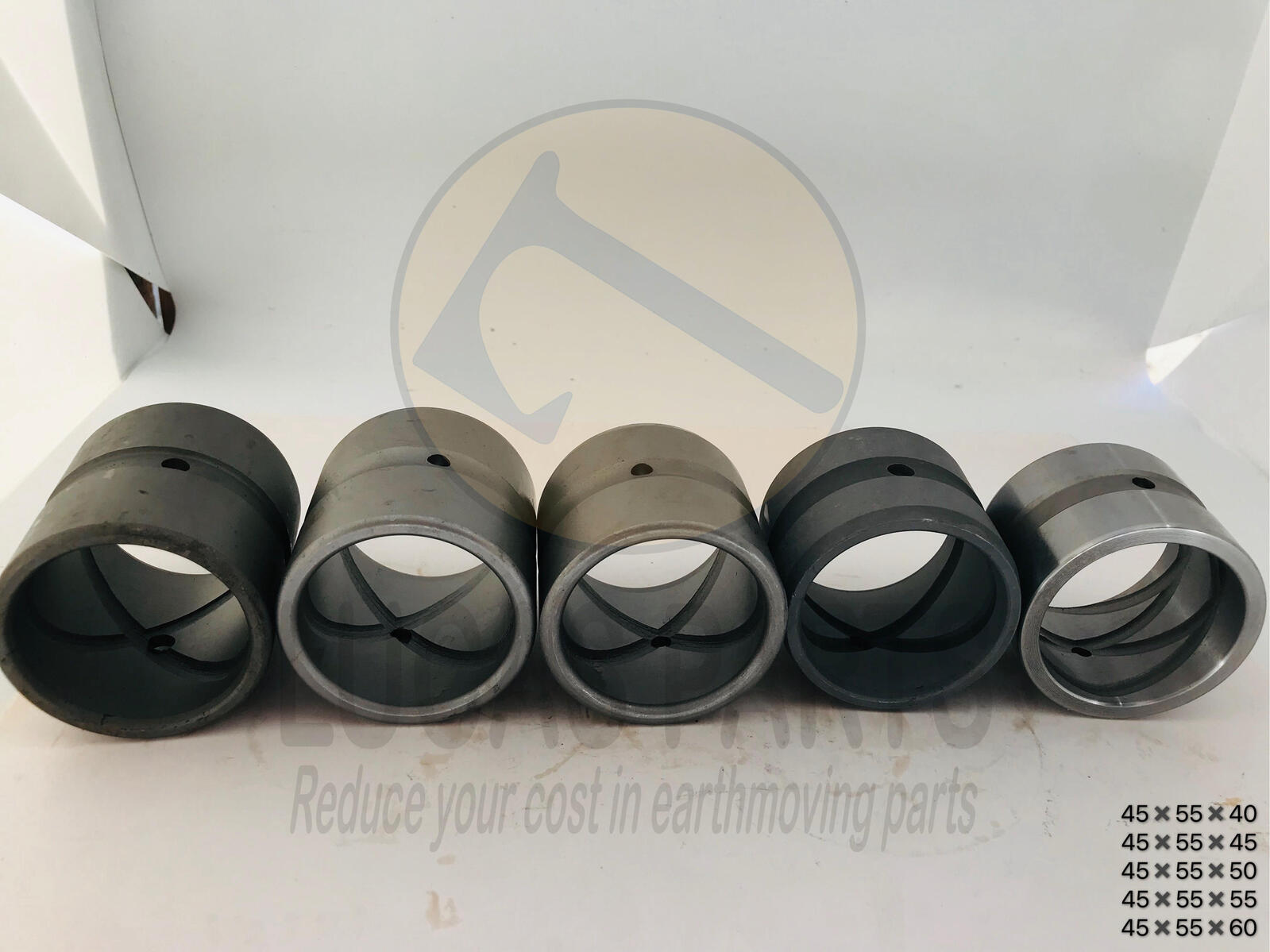

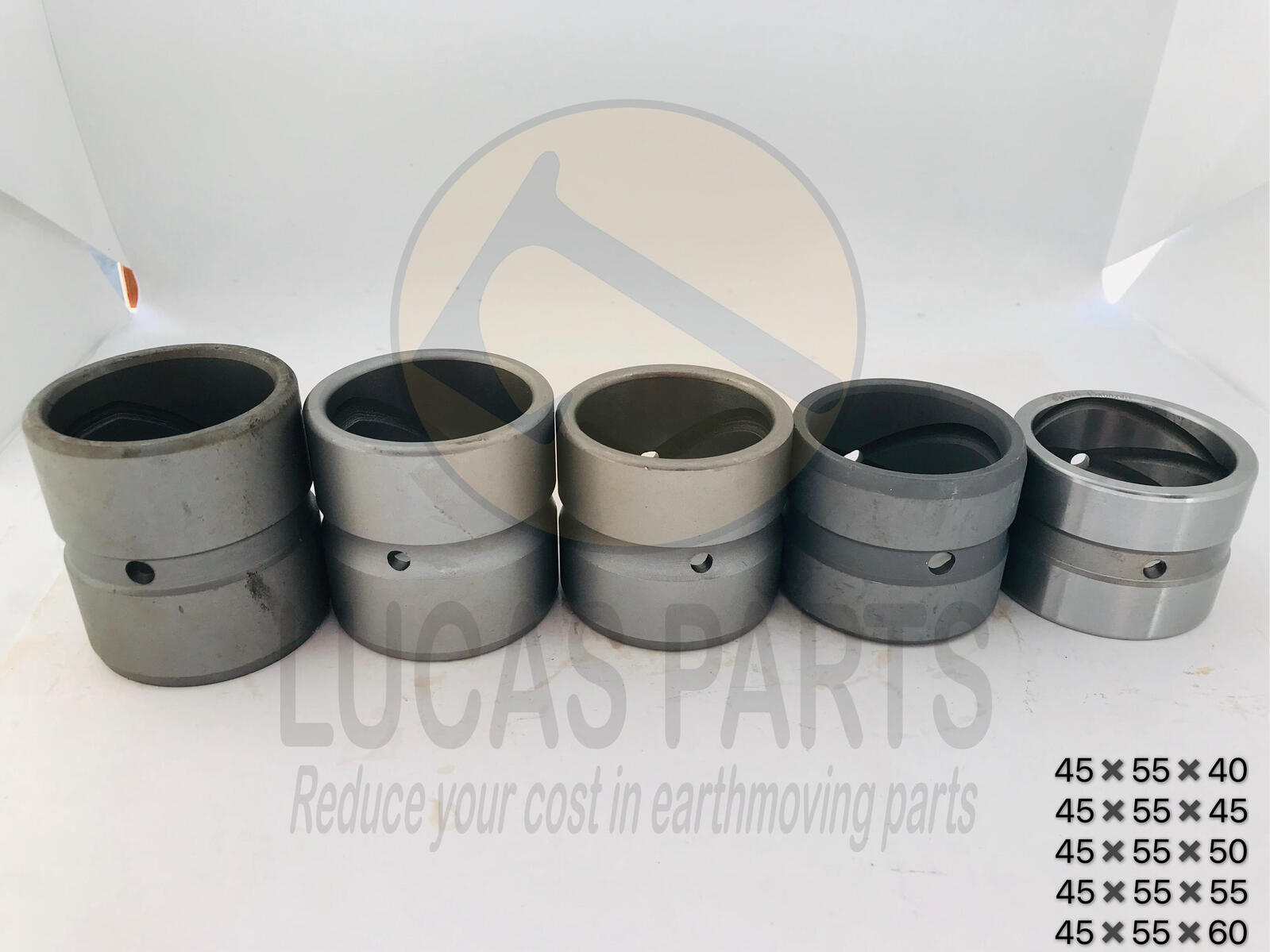

Bush 45*55*60mm ID*OD*L U35-4 (P1 P4) VIO45 VIO50 VIO55 VIO55-6B (P11 P8 P9) U55-4 (swing cylinder) PN 172112-83500

$45.00



Description

Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our bushes are heat treated and material matched for maximum service life. Made from 40Cr steel, quenching depth from 1.5-2.8mm and hardness is HRC 48-52.

Specifications

40Cr steel is alloy structural steel, carbon content is 0.37-0.45%,0.8-1.1% chromium, 1000 Mpa tensile strength, yield strength is 800 Mpa; it generally uses in parts which can be loaded with large force.

SKU B45X55X60M
Brand Lucas Parts
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.001500000m3
Unit Of Measure ea
