SKU: B80X110X82F165

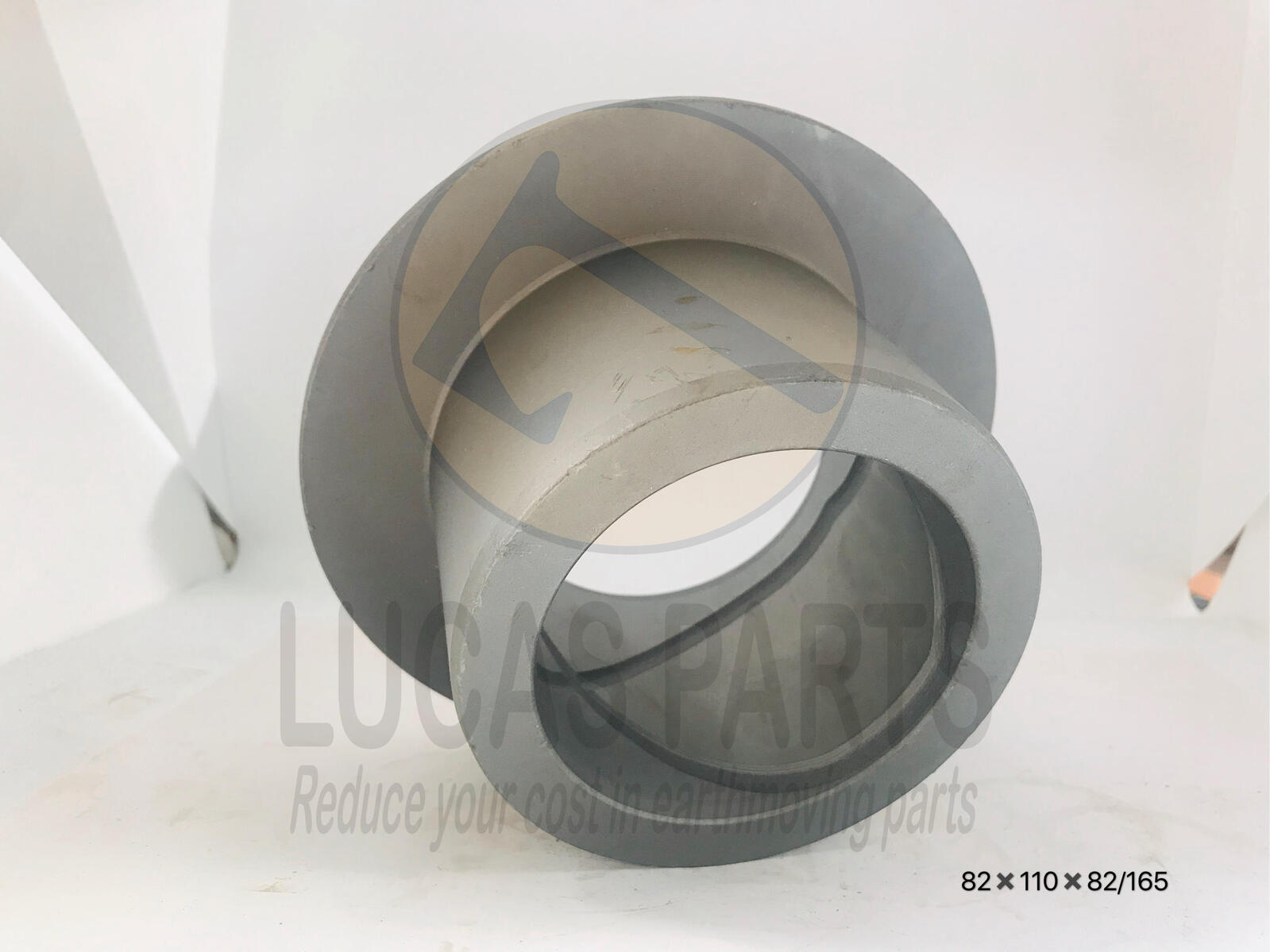

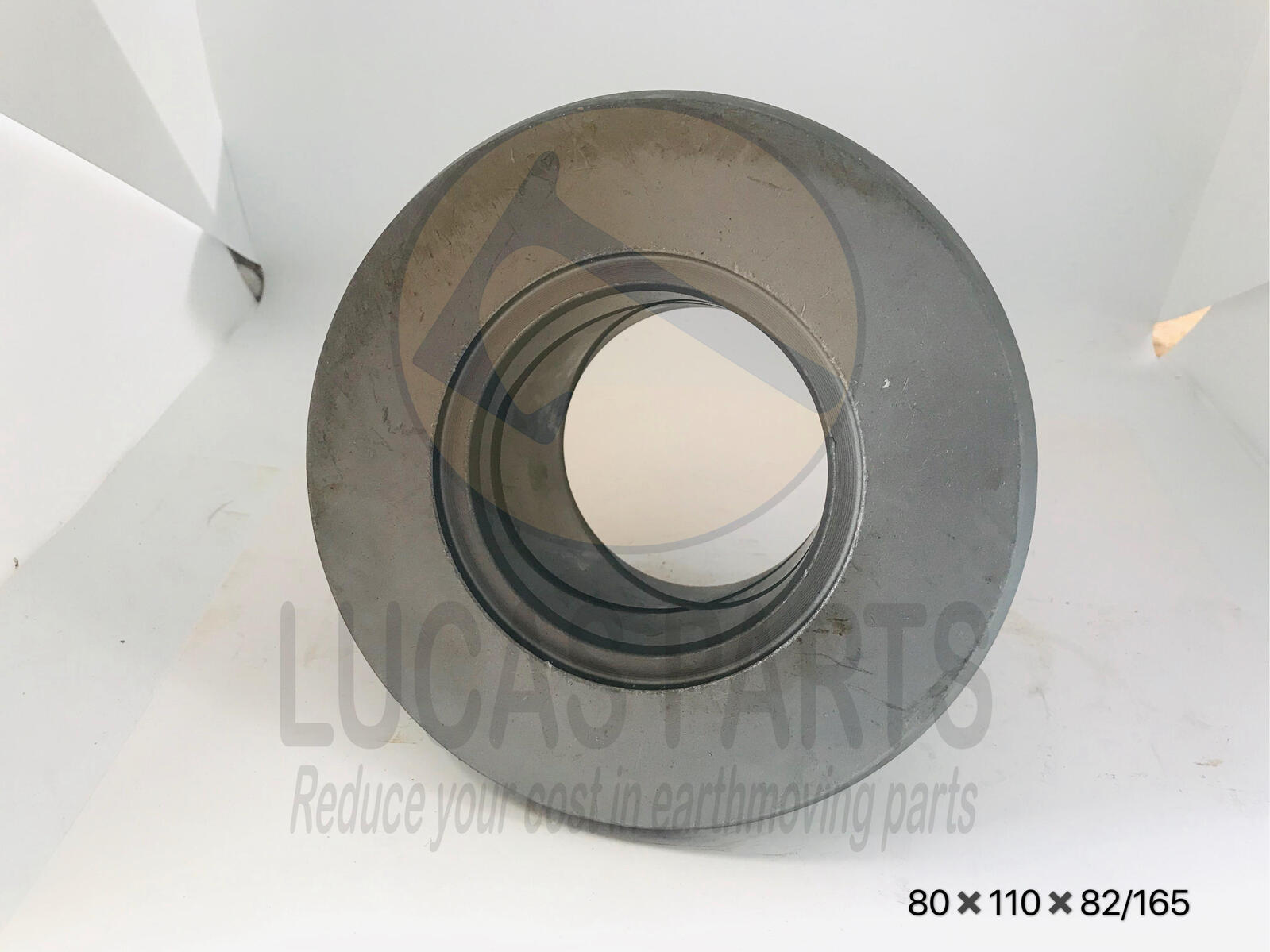

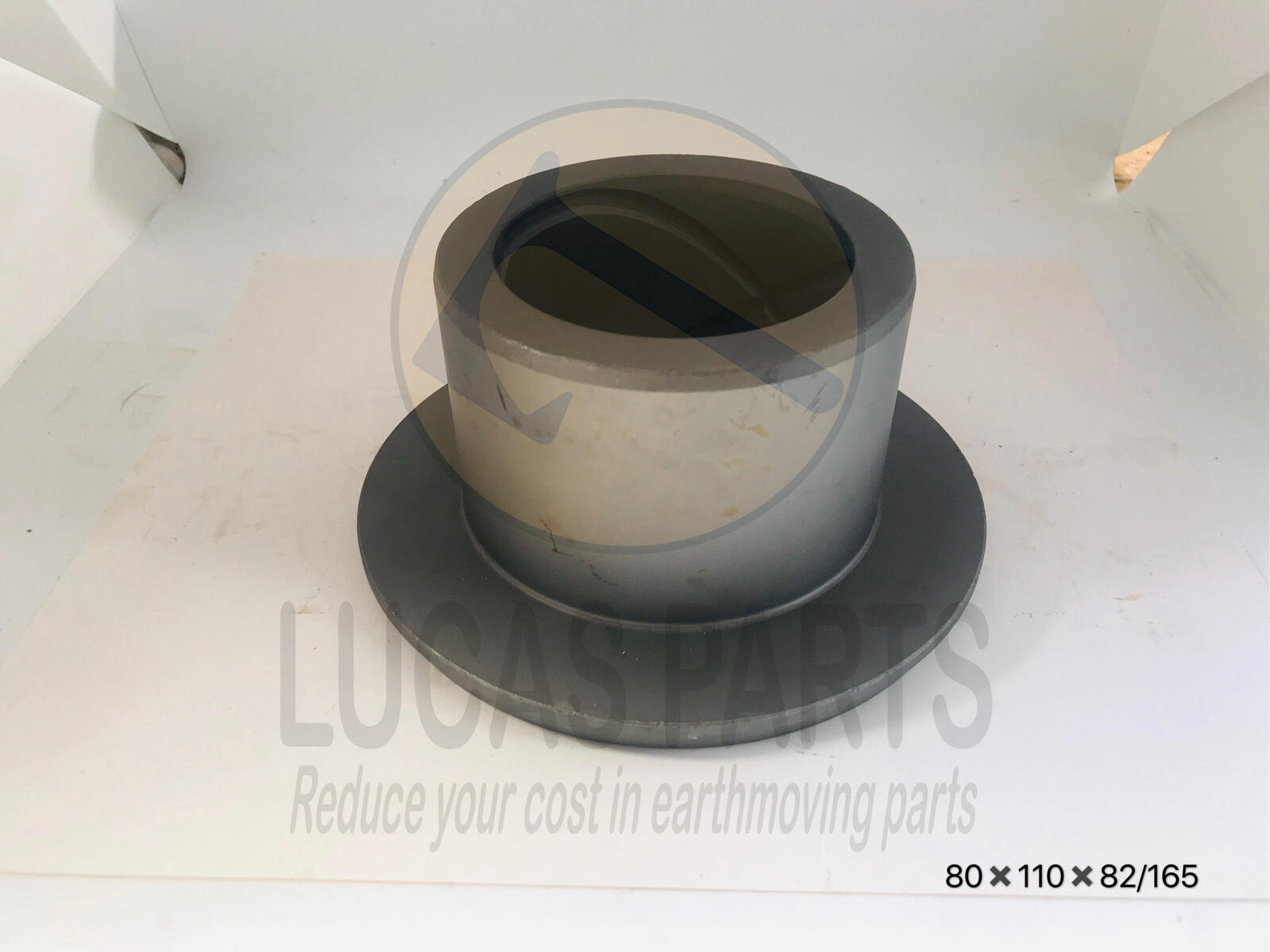

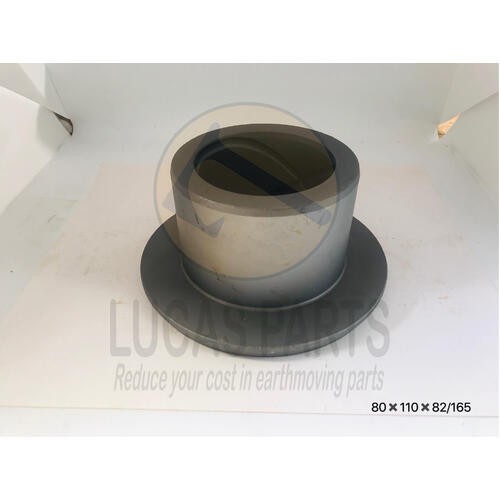

Bush 80*110*82 mm /165 Flange ID*OD*L*FD CX160 CX210 CX235C SH210-5 (P9) PN KRV2408

$150.00



Description

Compatible with the following equipment: (Postion 9)

CASE

  • CX160B, CX160C, CX160D LC,
  • CX210B, CX210C LC, CX210D LC,
  • CX210BNLC, CX210C NLC, CX210D NLC,
  • CX235C SR

SUMITOMO

  • SH210-5 SH210LC-5

Part Number:KRV2408

Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our bushes are heat treated and material matched for maximum service life. Made from 40Cr steel, quenching depth from 1.5-2.8mm and hardness is HRC 48-52.

Specifications

40Cr steel is alloy structural steel, carbon content is 0.37-0.45%,0.8-1.1% chromium, 1000 Mpa tensile strength, yield strength is 800 Mpa; it generally uses in parts which can be loaded with large force.

SKU B80X110X82F165
Brand Lucas Parts
Shipping Weight 4.5000kg
Shipping Width 0.150m
Shipping Height 0.150m
Shipping Length 0.200m
Shipping Cubic 0.004500000m3
Unit Of Measure ea
