SKU: B80X95X70M

Bush 80*95*70mm ID*OD*L CAT315 320 PN 2402912 (P11) CX210 CX235C (P9) SK55SRX-6 CX50B (P12)

$80.00



Description

CATERPILLAR: Position 11, Part Number:2402912, 240-2912

  • 315D L, 316E L, 318C, 318D L, 318D2 L, 318E L, 319C, 319D L, 319D LN,
  • 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L,
  • 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L,





Pin-and-Bush-Location-Diagram

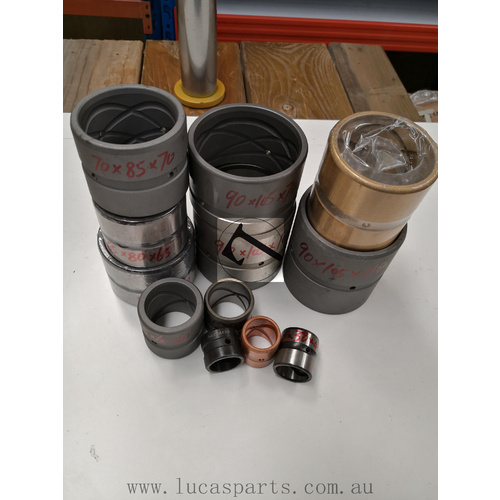

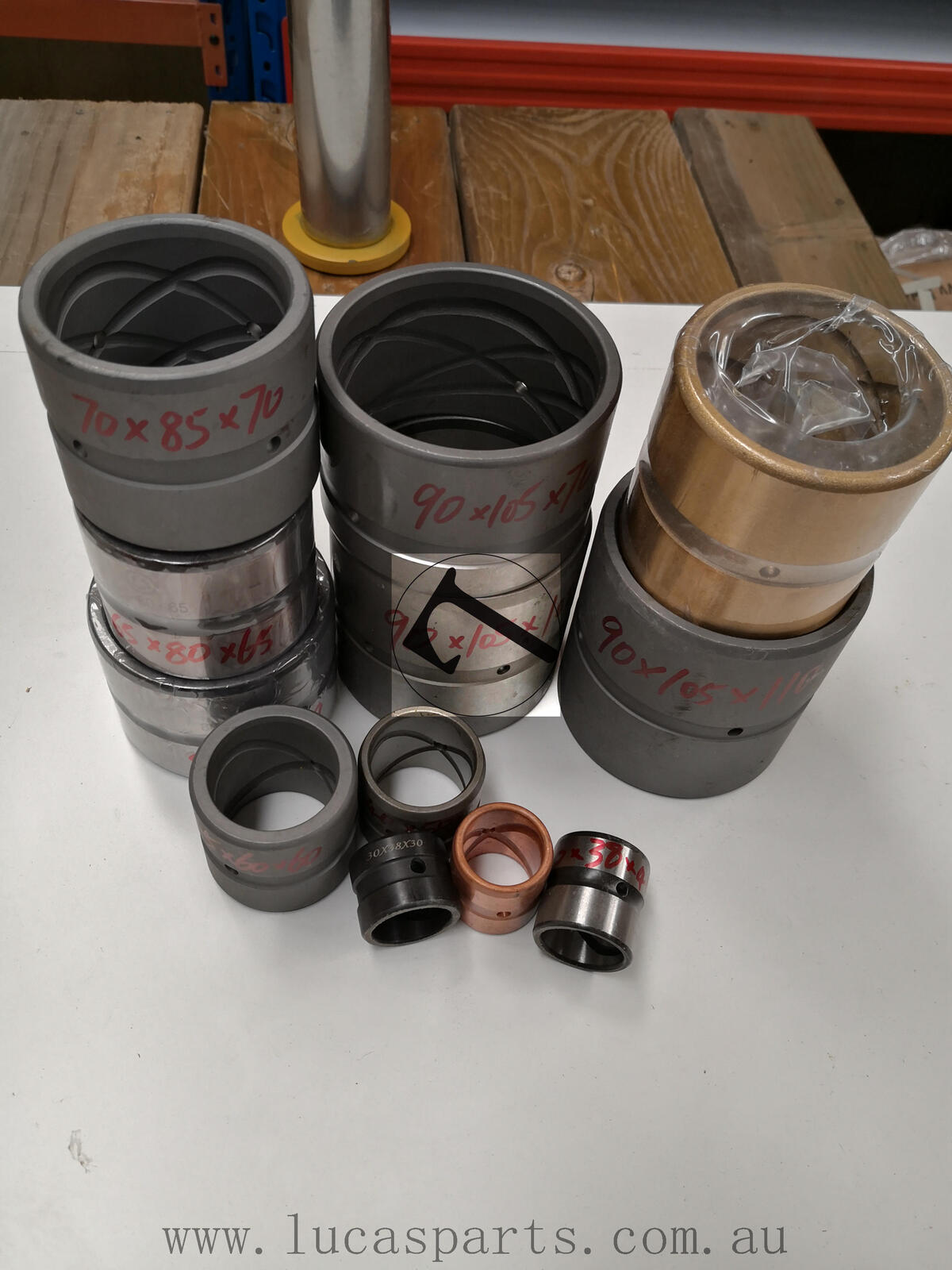

Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our bushes are heat treated and material matched for maximum service life. Made from 40Cr steel, quenching depth from 1.5-2.8mm and hardness is HRC 48-52.

Specifications

40Cr steel is alloy structural steel, carbon content is 0.37-0.45%,0.8-1.1% chromium, 1000 Mpa tensile strength, yield strength is 800 Mpa; it generally uses in parts which can be loaded with large force.

SKU B80X95X70M
Brand Lucas Parts
Shipping Weight 1.0000kg
Shipping Width 0.150m
Shipping Height 0.150m
Shipping Length 0.200m
Shipping Cubic 0.004500000m3
Unit Of Measure ea
