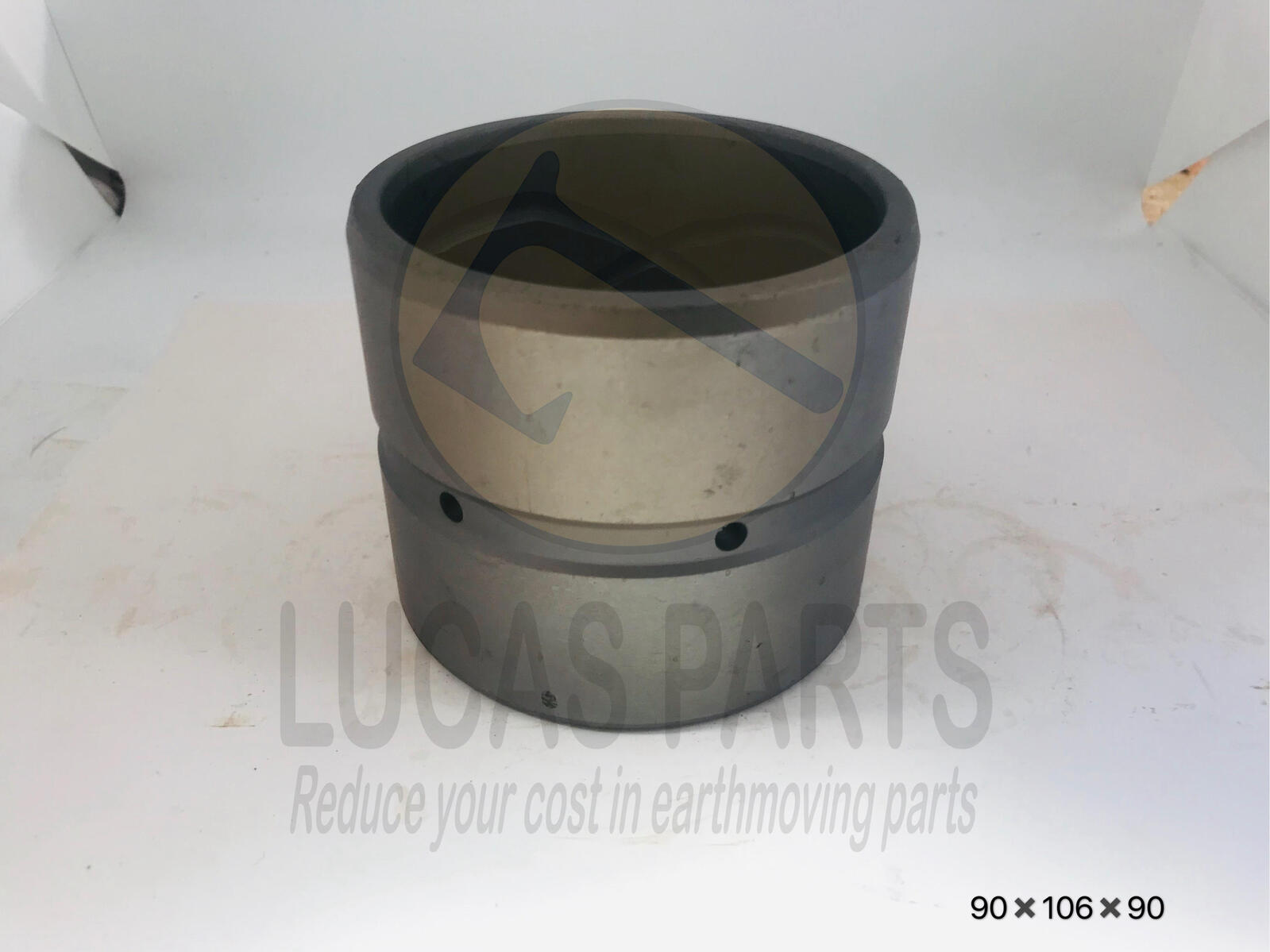

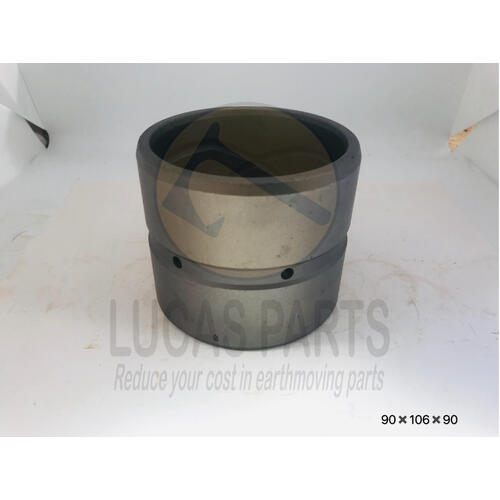

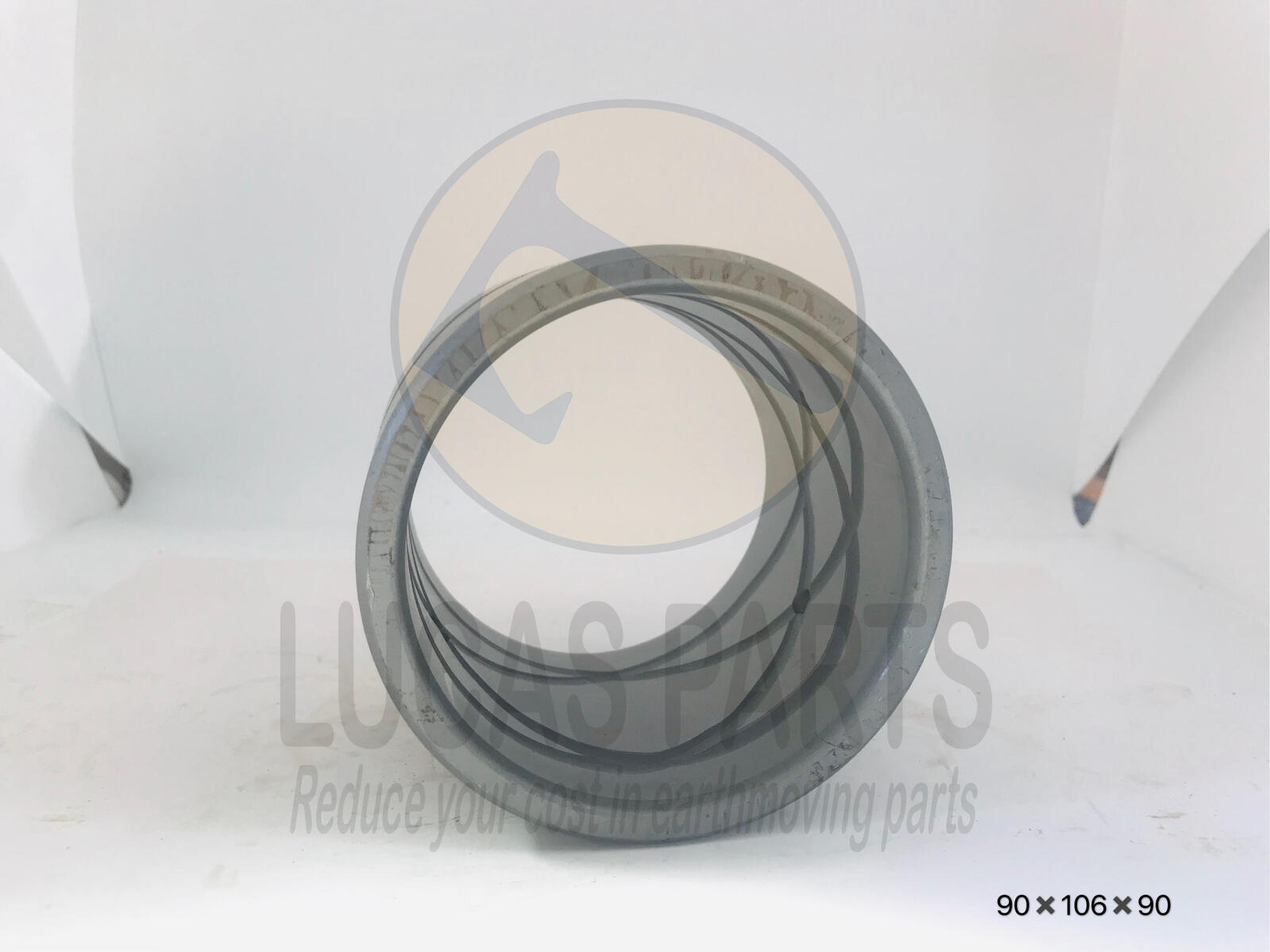

Bush 90*106*90mm ID*OD*L CAT315 316 318 319 320 323 325D 329D 330 336 (P5) PN 228-5615 489-3008

Compatible with the following equipment:

CATERPILLAR,

WHEELED EXCAVATOR

• MH3040 M318D M318D MH M320D2 M322D M322D MH M322D2 M322D2 MH M324D2 MH

EXCAVATOR, Postion 5, part number 228-5615, 2285615

• 336 340 315D L 316E L 316F 316F L 318D L 318D2 318D2 L 318E L 318F 318F L 319D 319D L 319D LN 320C 320D 320D FM 320D GC 320D L 320D LN 320D LRR 320D RR 320D2 320D2 FM 320D2 GC 320D2 L 320E 320E L 320E LN 320F L 321D LCR 323D 323D L 323D LN 323D S 323D SA 323D2 323D2 L 323E L 323E LN 323E SA 323F 323F L 323F LN 323F OEM 323F SA 324D 324D FM 324D L 324D LN 324E 324E L 324E LN 325C 325D 325D FM 325D FM LL 325D L 325D MH 325F 325F LCR 326D L 326D2 326D2 L 326F 326F L 326F LN 328D LCR 329D 329D L 329D LN 329D2 329D2 L 329E 329E L 329E LN 329F L 330C 330C L 330C LN 330D 330D L 330D LN 330D MH 330D2 330D2 L 330F 330F L 330F LN 335F 335F LCR 336D 336D L 336D LN 336D2 336D2 GC 336D2 L 336D2 XE 336E 336E H 336E HVG 336E L 336E LH 336E LN 336E LNH 336F 336F L 336F L XE 336F LN 336F LN XE 336F LNXE 336F XE 340D L 340D2 L 340F 340F L UHD 352F 385C L 568 FM 568 FM LL

MATERIAL HANDLER

• MH3040 MH3250

FOREST PRODUCTS

• 324D FM 324D FM LL 558 548

CAT Part number CA2285615, 228-5615, 2285615

Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.

Our bushes are heat treated and material matched for maximum service life. Made from 40Cr steel, quenching depth from 1.5-2.8mm and hardness is HRC 48-52.
