SKU: P9S110X960MBRT

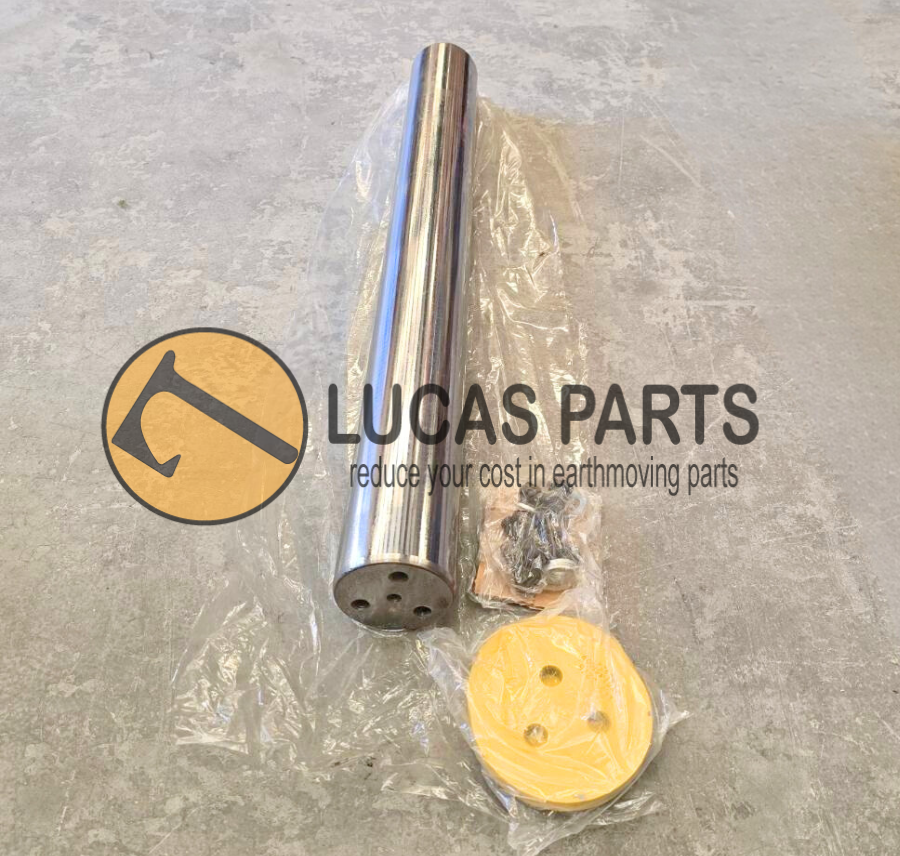

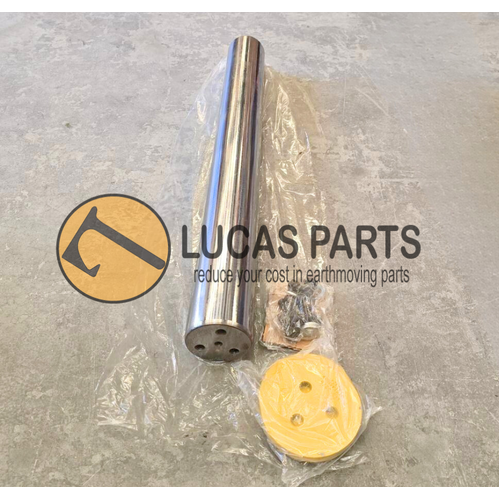

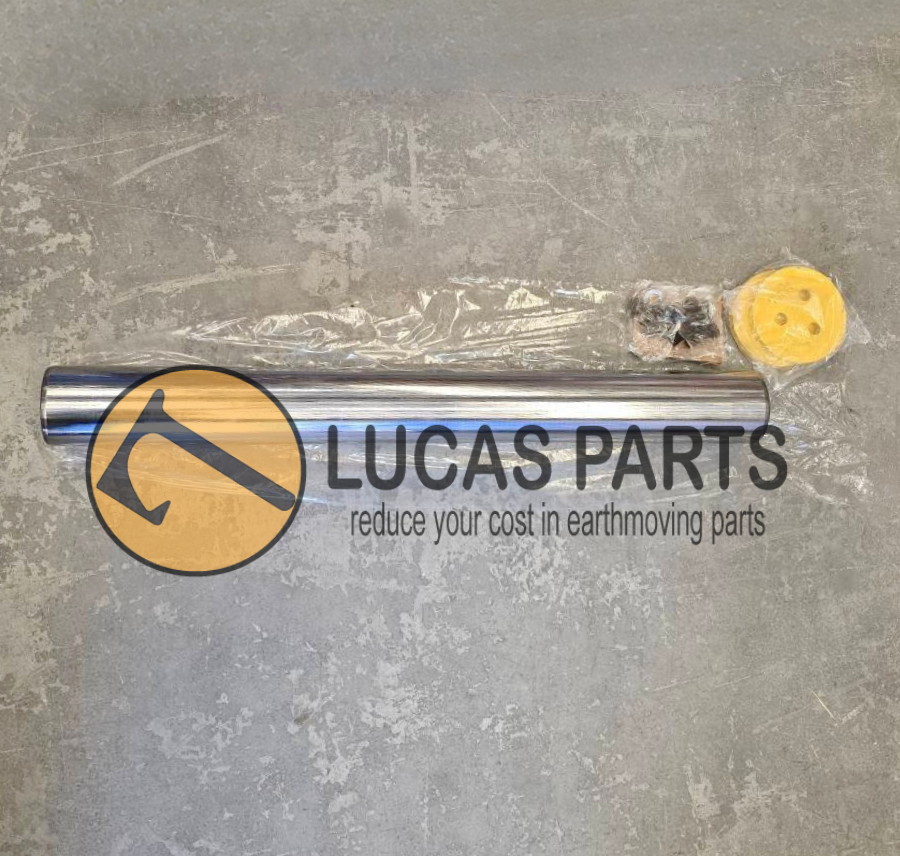

Excavator Pin 110*960mm ID*TL Boom Lift Ram Top Pin (P4) CAT 330 336 340E PN 192-8321

Straight Pin with Mounting Flanges

$1,200.00



Description

Compatible with the following equipment:

Caterpillar

FORESTRY PRODUCTS

  • 568

EXCAVATOR

  • 336E LN 340 336 MHPU 340F 336E LH 330D MH
  • 336 GC 336F LNXE 336D2 XE 336D2 LXE 330C LN
  • 340F L LRE 336D 336E 336F 336F LN XE 336D2 L 336F LN
  • 330D LN 330C L 340D2 L 336F L 336D L 336F XE 336D2 336F L XE
  • 568 FM 336E LNH 330C FM 330C 330D 336D LN 336D2 GC 340D L
  • 340MHPU 336D2 L XE 336 330C MH 340F L UHD FM568 324D L 330D L
  • 336E L 330D FM 325C 336E H

MATERIAL HANDLER

  • MH3250

MOBILE HYD POWER UNIT

  • 330D 330D L 330C 336FMHPU 336E 336D L 336E HVG



Part Number: 192-8321 1928321

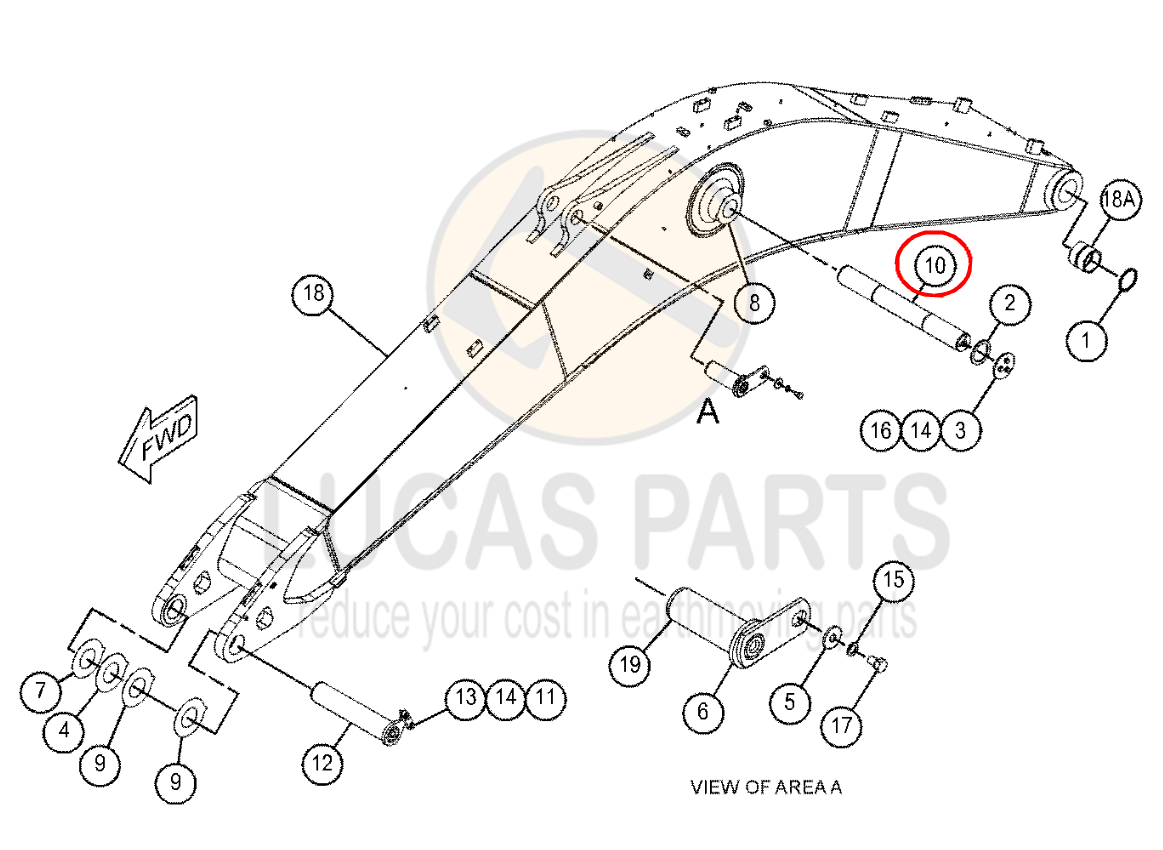

Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 417 Mpa; it is widely used in machinery parts.









SKU P9S110X960MBRT
Brand Lucas Parts
Shipping Weight 110.0000kg
Shipping Width 0.600m
Shipping Height 0.300m
Shipping Length 1.200m
Shipping Cubic 0.216000000m3
Unit Of Measure ea
