SKU: P35X330M1H2B

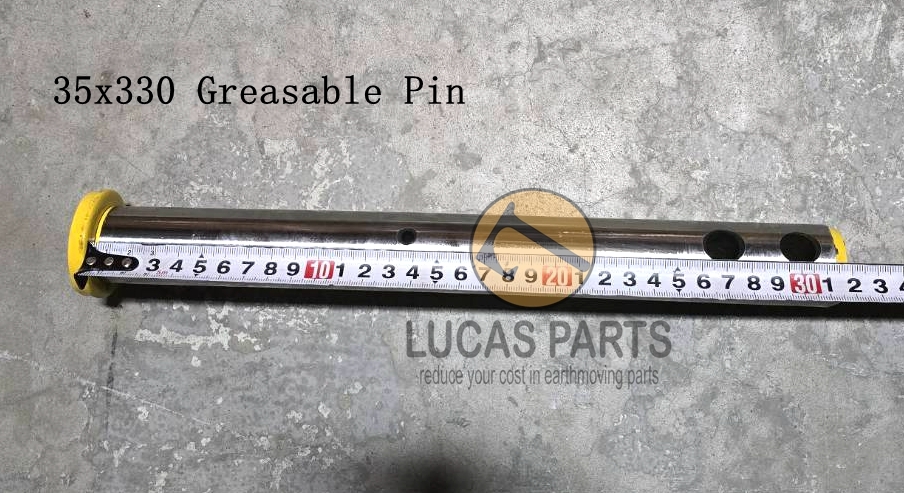

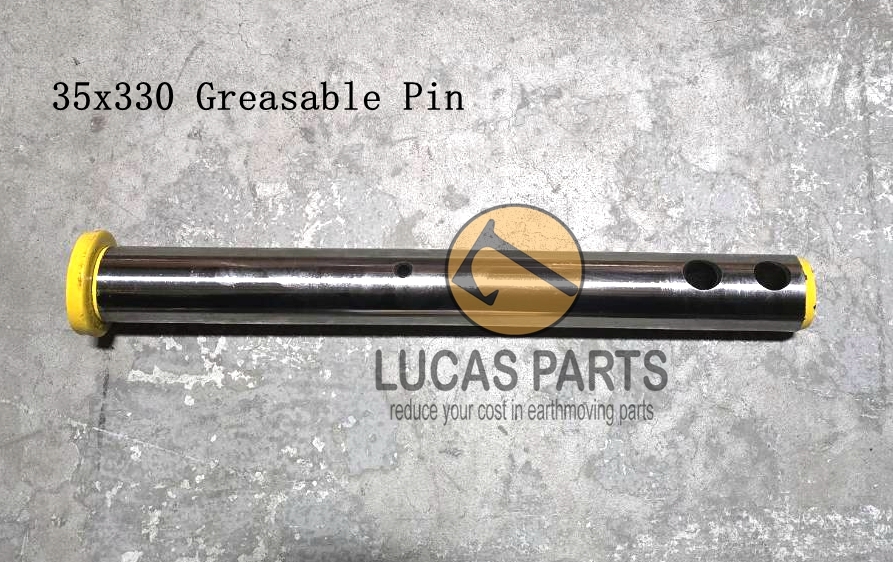

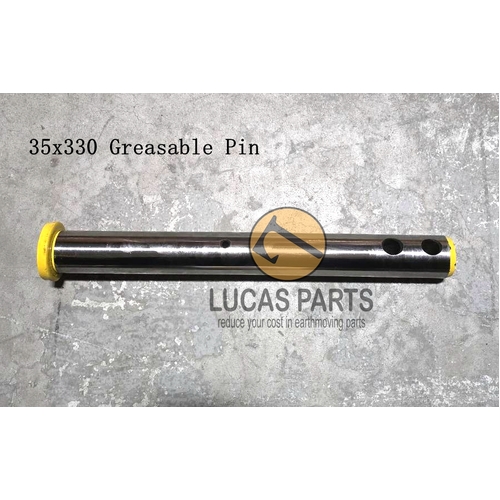

Excavator Pin 35*330mm ID*TL One Grease Hole

LH1= 300mm, LH2=270mm, GH=136mm

$95.00



Description





Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 363 Mpa; it is widely used in machinery parts.









SKU P35X330M1H2B
Brand Lucas Parts
Shipping Weight 5.0000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.400m
Shipping Cubic 0.004000000m3
Unit Of Measure ea
