SKU: P40X280MNG

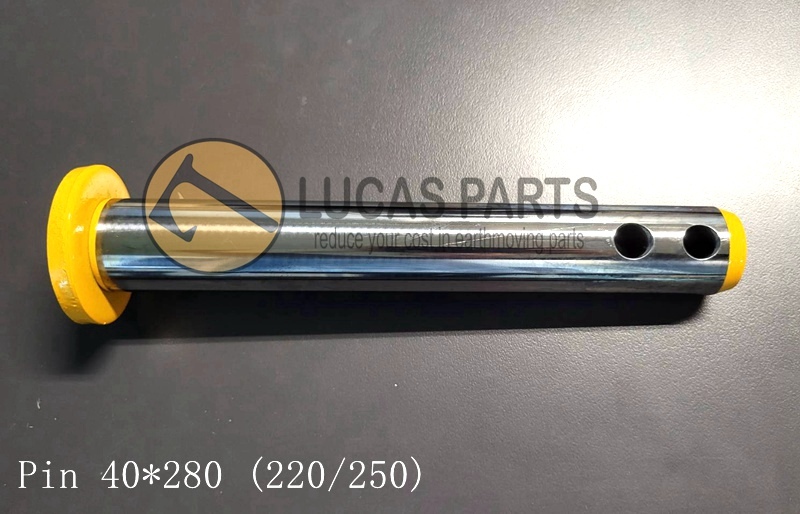

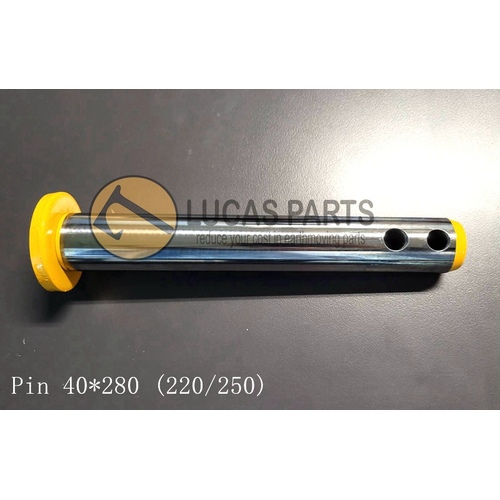

Excavator Pin 40*280mm OD*TL Solid Pin

OD=40mm, TL=280mm,LH1=250mm, LH2=220mm

$80.00



Description

OD=40mm, TL=280mm,LH1=250mm, LH2=220mm, GH1=105mm.









Pin and Bush Location Diagram

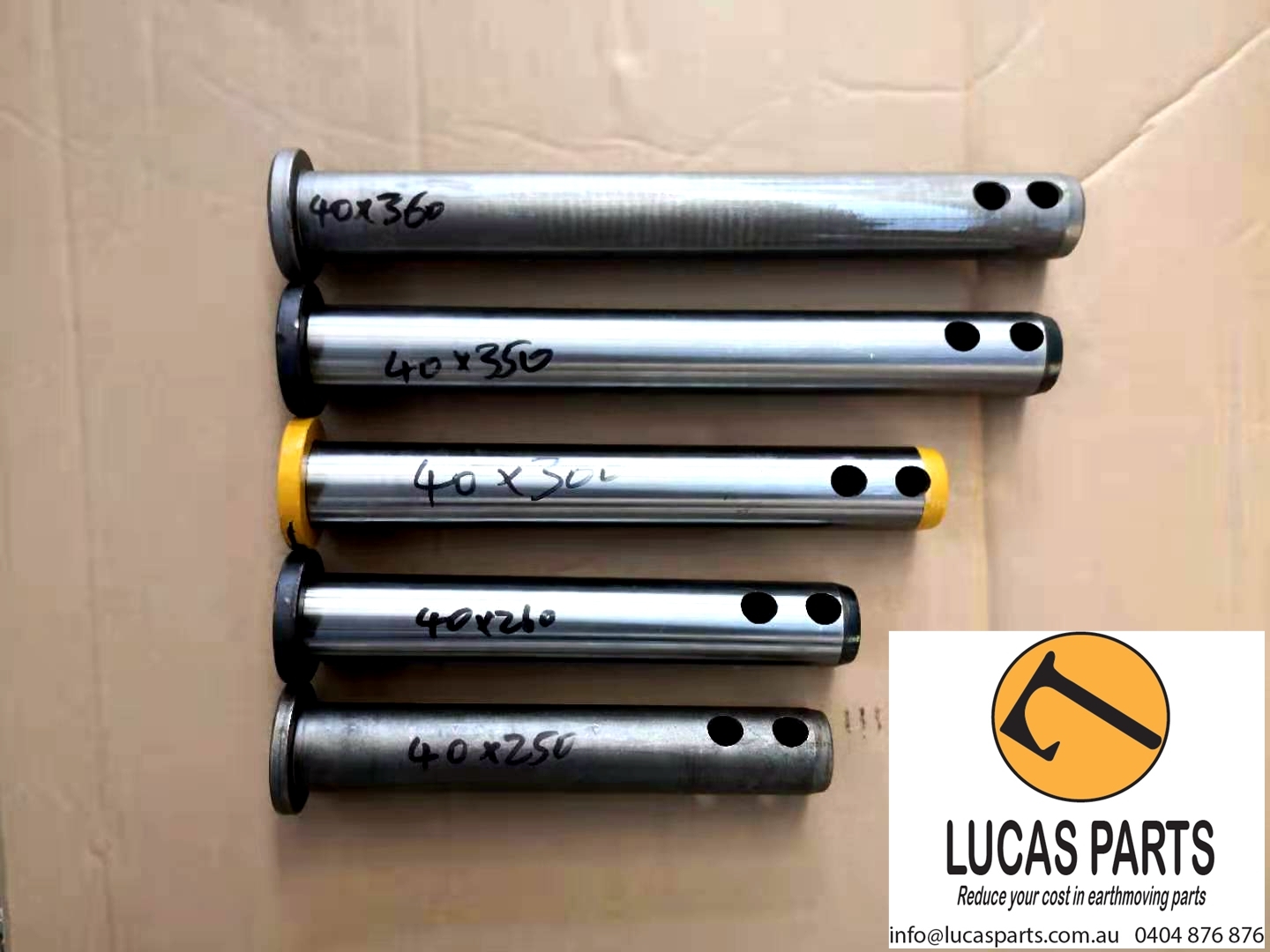

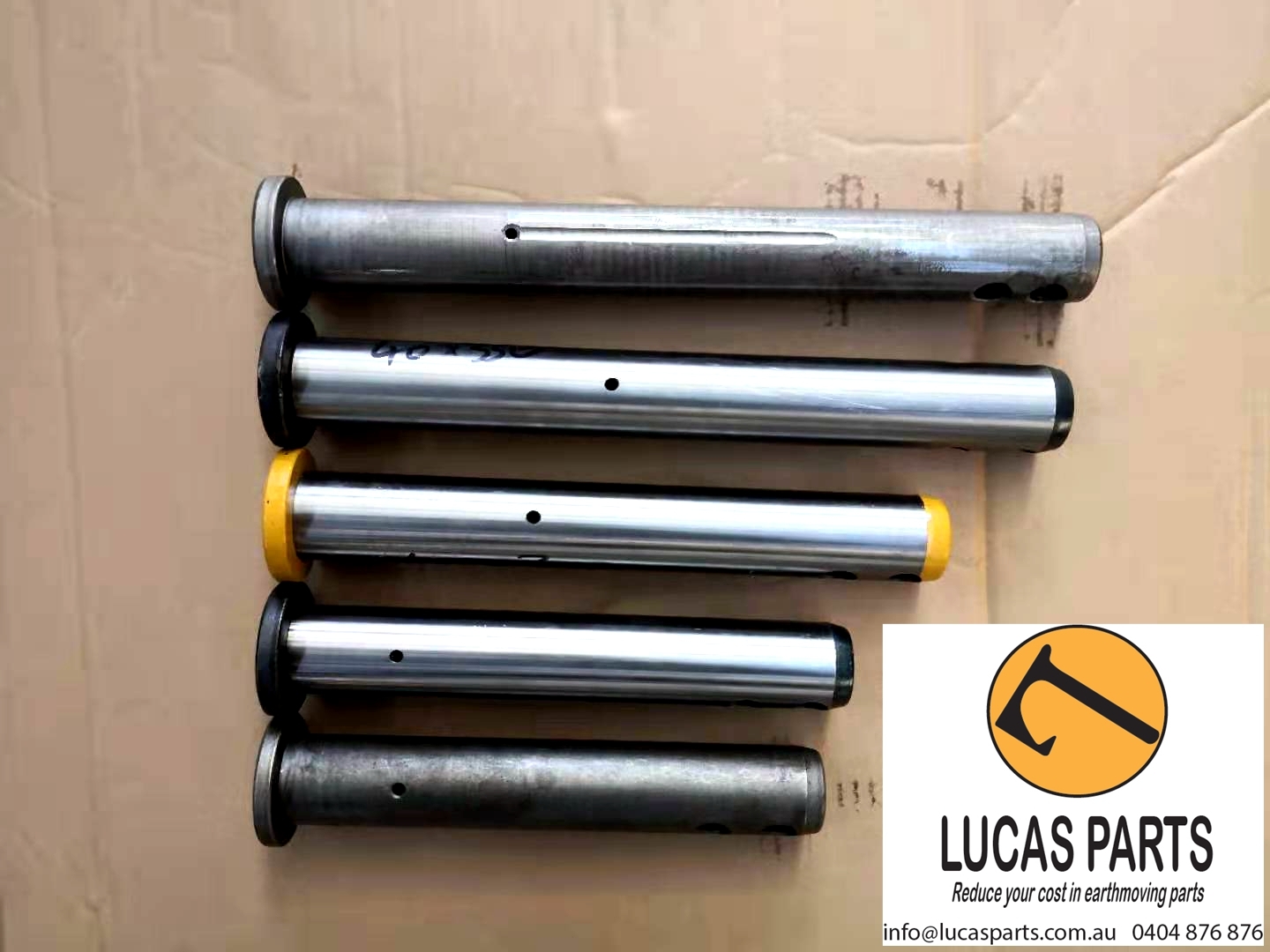

Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 364 Mpa; it is widely used in machinery parts.









SKU P40X280MNG
Brand Lucas Parts
Shipping Weight 3.0000kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.300m
Shipping Cubic 0.000750000m3
Unit Of Measure ea
