SKU: P45X260SF1H

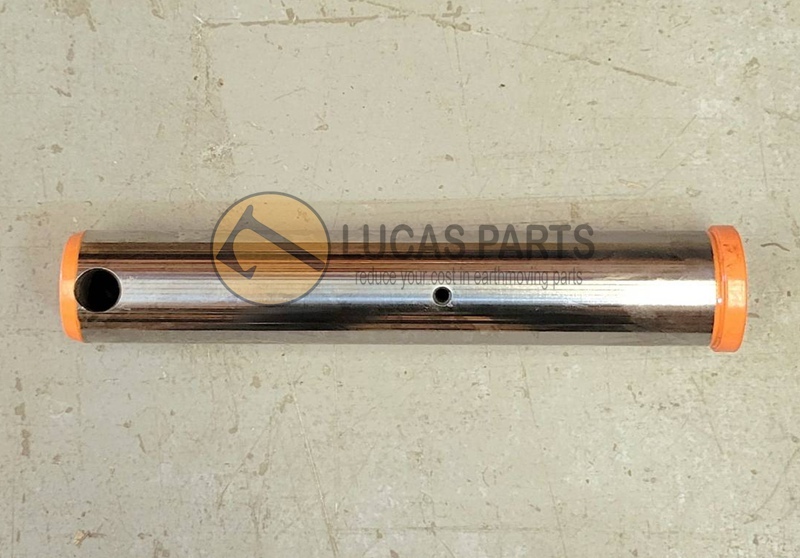

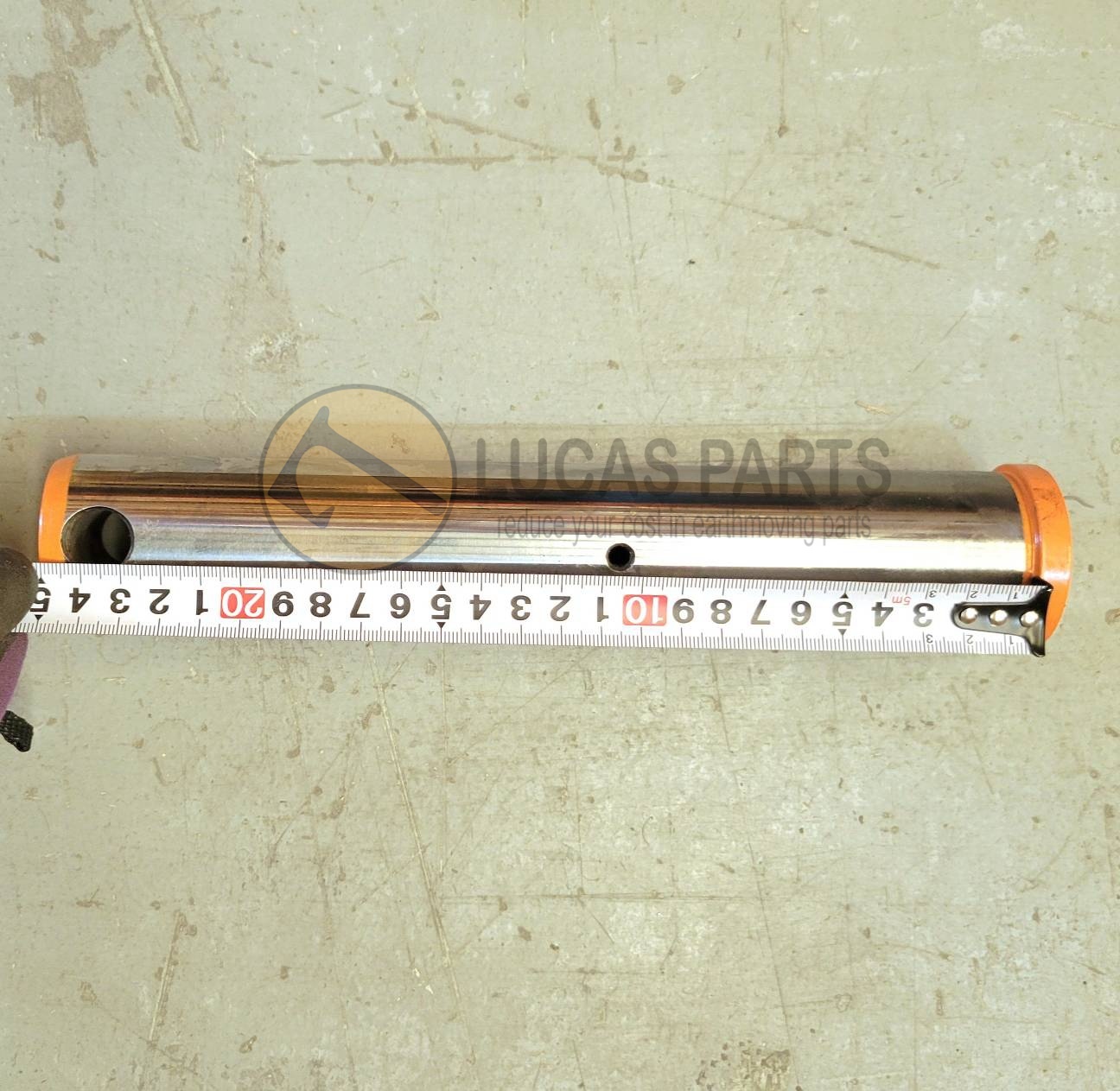

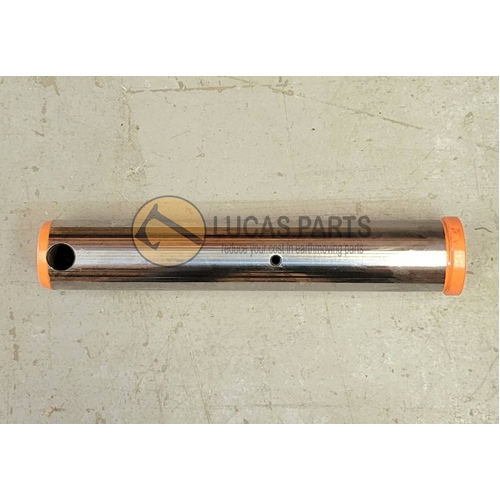

Excavator Pin 45*260mm ID*TL EX55 EX58 TB50 ZX55 ZX60 (P10) PN 4325037

$95.00



Description

Compatible with the following equipment:

HITACHI

  • EX55UR, EX55UR-3, EX58MU,
  • TB50,
  • ZX55UR, ZX55UR-2, ZX55UR-2D,
  • ZX55UR-2DU, ZX55UR-2U, ZX55UR-3, ZX55UR-3D,
  • ZX55UR-HHE, ZX60-HCMC,
  • ZX60USB-3, ZX60USB-3F,
  • ZX60USBNA-3, ZX65USB-3F

Postion 8

Hitachi Part Number: 4325037

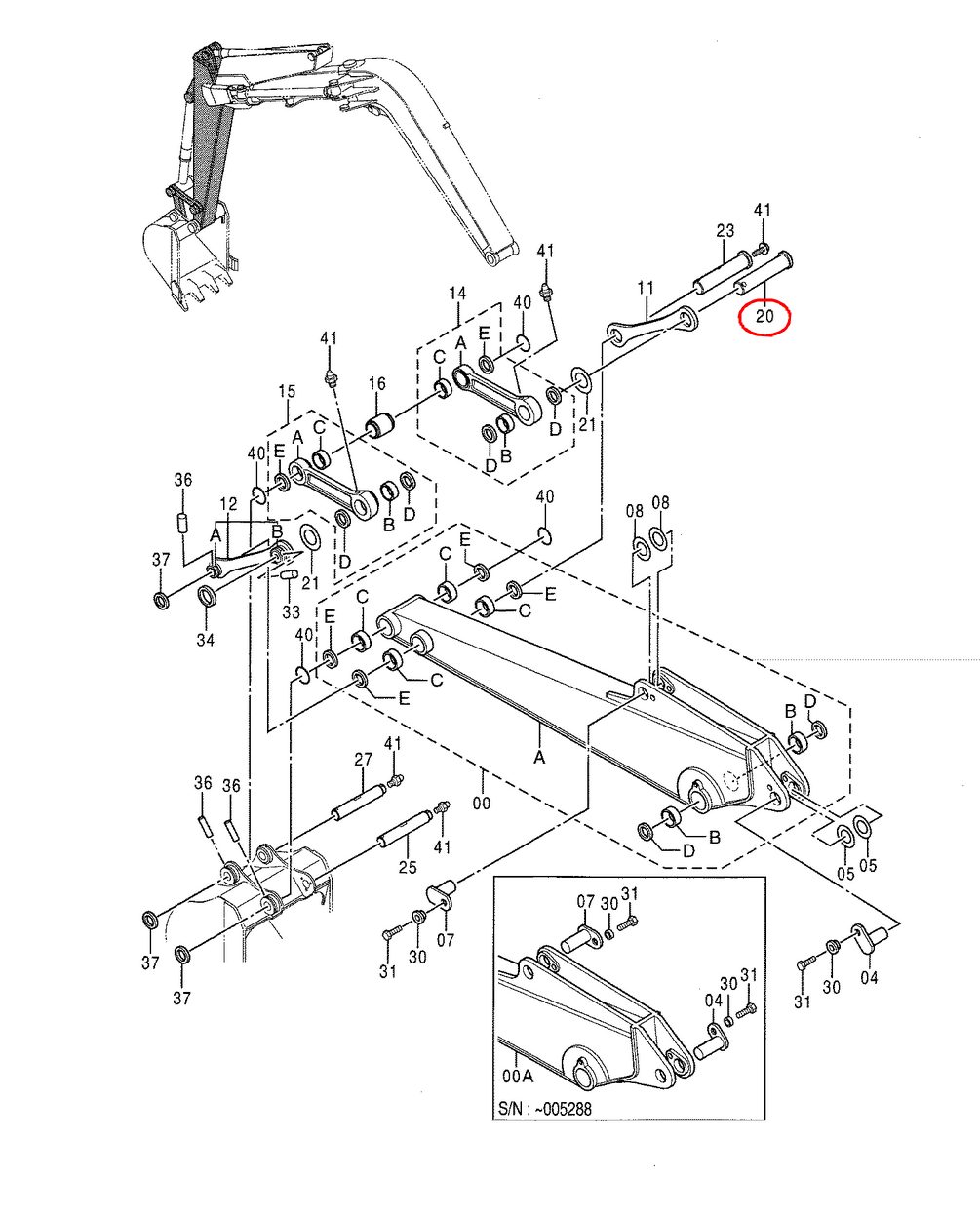

Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 368 Mpa; it is widely used in machinery parts.









SKU P45X260SF1H
Brand Lucas Parts
Shipping Weight 3.0000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.500m
Shipping Cubic 0.005000000m3
Unit Of Measure ea
