SKU: P45X288M2H

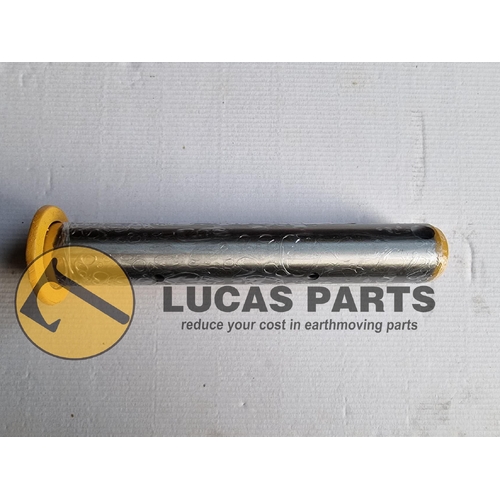

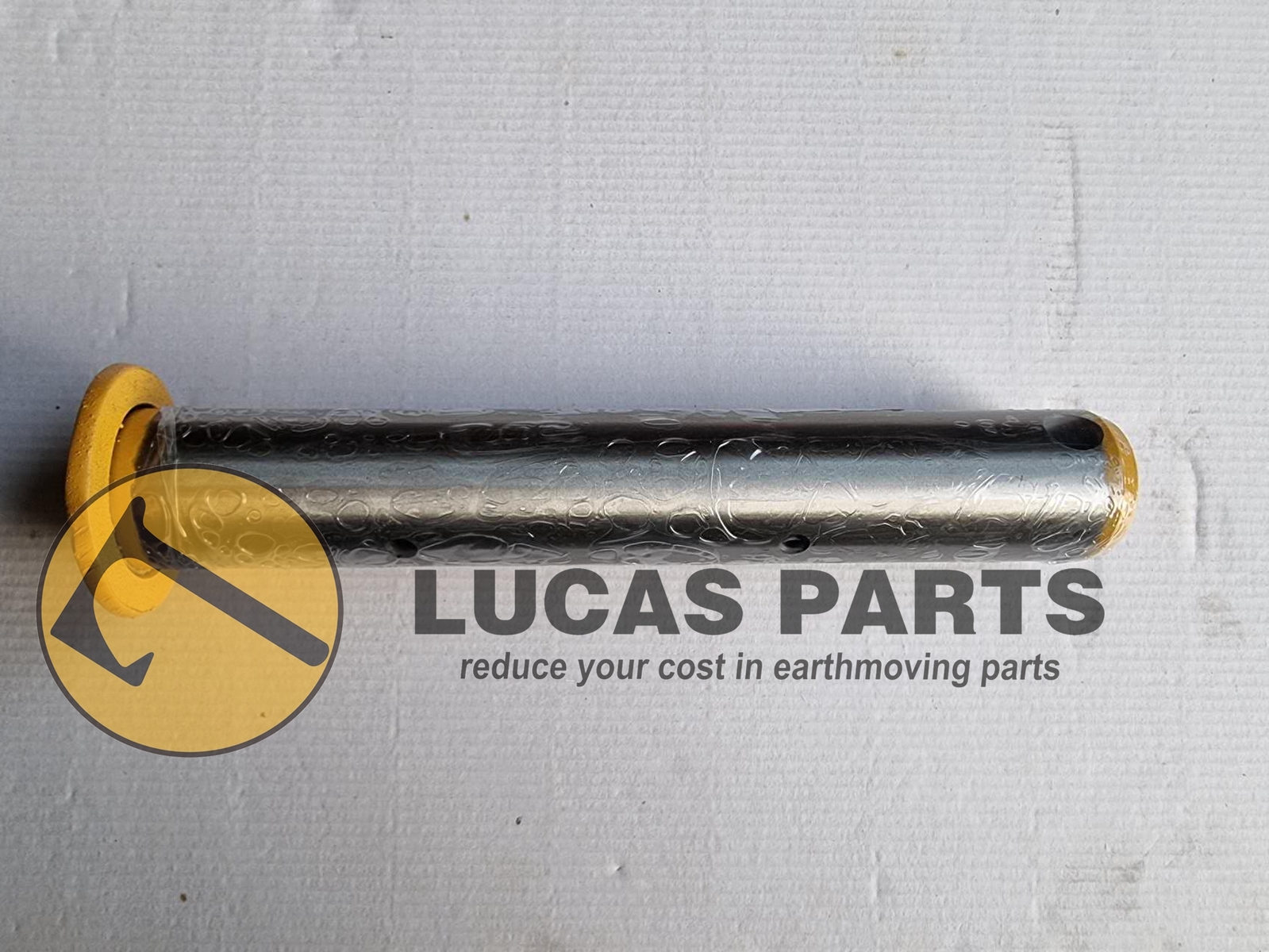

Excavator Pin 45*288mm OD*TL Bucket Pin (P9 P11) PC40MR PC45MR PC50MR PC55MR PN 22M-70-22830

$95.00



Koamtsu Part Number: 22M-70-22860

Description

Compatible with the following equipment:

Komatsu

  • PC45MR-3 S/N 5001-UP (North America Spec.) EXCAVATORS
  •     BUCKET PIN (#5001-) » 22M-70-22830
  • PC55MR-3 S/N 15001-UP (North America Spec.) EXCAVATORS
  •     BUCKET PIN (#15001-) » 22M-70-22830
  • PC55MR-3 S/N 15001-UP (EU Spec.) EXCAVATORS
  •     BUCKET PIN (#15001-) » 22M-70-22830
  • PC55MR-3 S/N 15001-UP EXCAVATORS
  •     BUCKET PIN (#15001-) » 22M-70-22830
  • PC45MR-3 S/N 5001-UP EXCAVATORS
  •     BUCKET PIN (#5001-) » 22M-70-22830
  • PC40MR-2 S/N 8001-UP (For Australia) EXCAVATORS
  •     BUCKET PIN » 22M-70-22830
  • PC40MR-2 S/N 8001-UP (For North America) EXCAVATORS
  •     BUCKET PIN » 22M-70-22830
  • PC40MR-2 S/N 8001-UP (Oversea Spec.) EXCAVATORS
  •     BUCKET PIN » 22M-70-22830
  • PC50MR-2 S/N 5001-UP (For North America) EXCAVATORS
  •     BUCKET PIN » 22M-70-22830
  • PC50MR-2 S/N 5001-UP (For Australia) EXCAVATORS
  •     BUCKET PIN » 22M-70-22830
  • PC50MR-2 S/N 5001-UP (For EU) EXCAVATORS
  •     BUCKET PIN » 22M-70-22830
  • PC50MR-2 S/N 5001-UP (Oversea Spec.) EXCAVATORS
  •     BUCKET PIN » 22M-70-22830
  • PC50MR-2 S/N 5001-UP (For High Altitude) EXCAVATORS
  •     BUCKET PIN » 22M-70-22830



Koamtsu Part Number:  22M-70-22830,  22M7022830

Position: 9





Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 367 Mpa; it is widely used in machinery parts.









SKU P45X288M2H
Brand Lucas Parts
Shipping Weight 4.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.500m
Shipping Cubic 0.005000000m3
Unit Of Measure ea
