SKU: P65X365SFNG1B

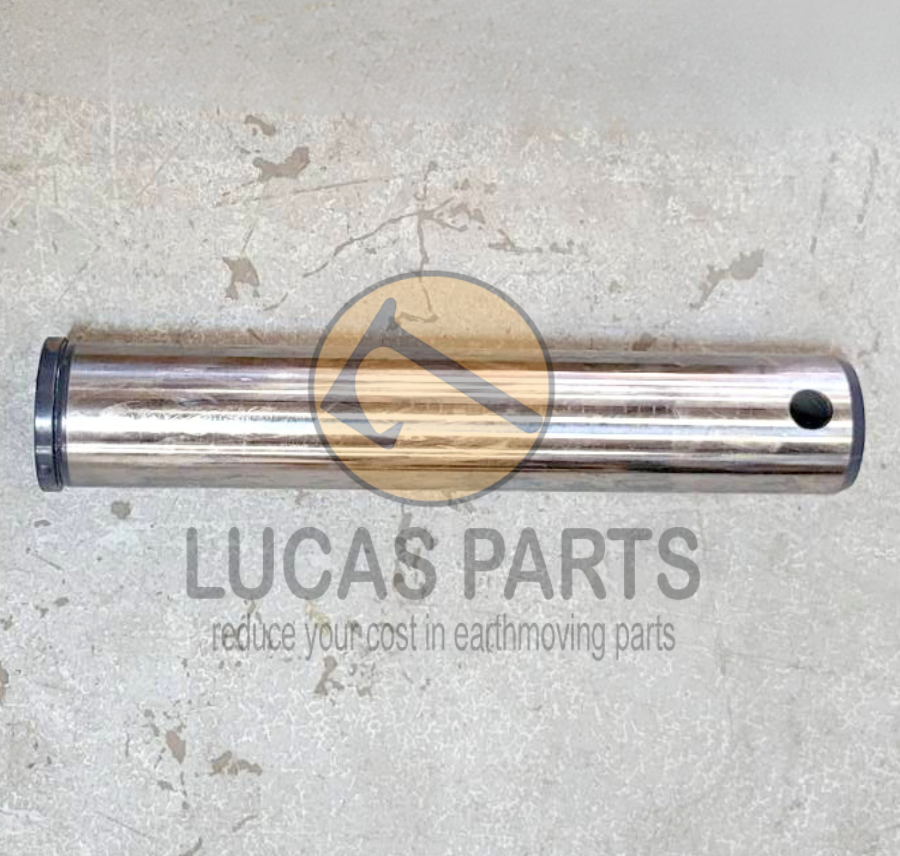

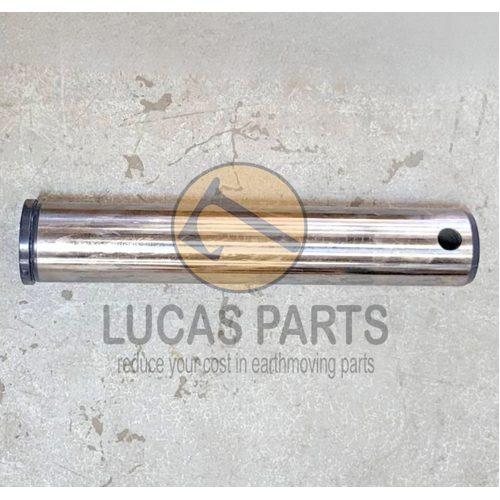

Excavator Pin 65*365mm OD*TL (P8) EC135 EC140 PN 14510307

Solid Pin

$150.00



Description

Compatible with the following equipment:

VOLVO

  • EC135B, EC140, EC140B, EC140C
  • EC140D, EC210, EC210B, EC210C



Part Number: 3089103





Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 397 Mpa; it is widely used in machinery parts.









SKU P65X365SFNG1B
Brand Lucas Parts
Shipping Weight 12.0000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.500m
Shipping Cubic 0.005000000m3
Unit Of Measure ea
