SKU: P70X180TNGTHD

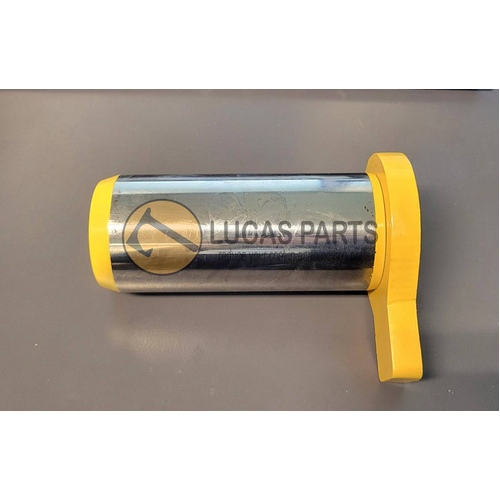

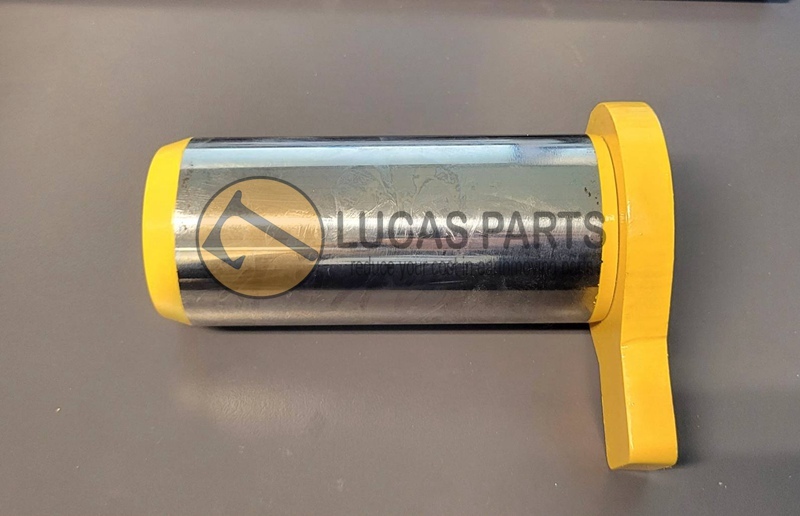

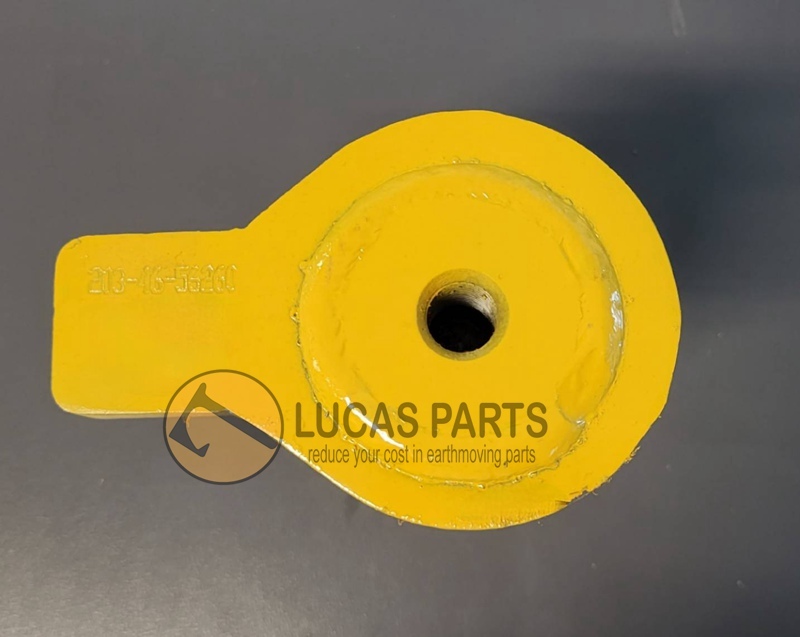

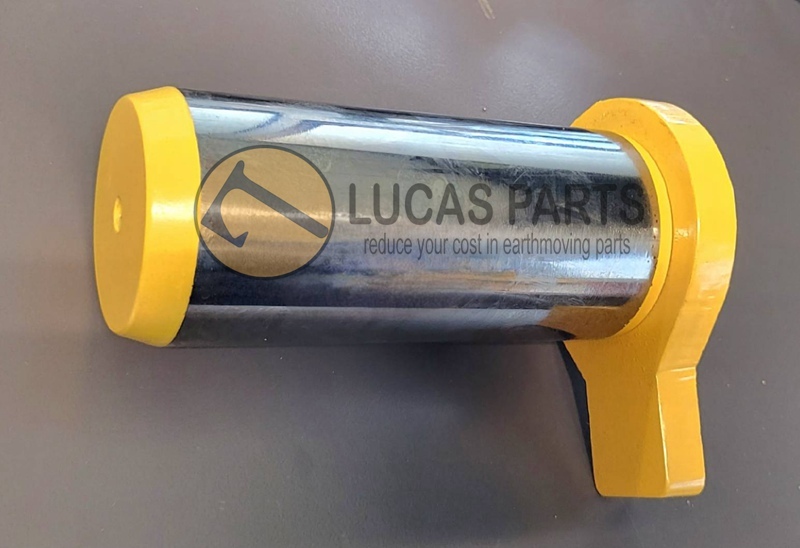

Excavator Pin 70*180mm ID*TL Boom Lift Ram Bottom Pin (P1) PC100 PC120 PC130 PC128 PC138 PN 2034656260

$195.00



Description

Compatible with the following equipment:

KOMATSU   Postion 1         Part Number  203-70-56260,2037056260 203-46-56260, 2034656260, 203-70-41391:

  • PC100, PC100L, PC120, PC120SC,
  • PC128US, PC128UU,
  • PC130, PC138, PC138US, PC150

Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 376 Mpa; it is widely used in machinery parts.









SKU P70X180TNGTHD
Brand Lucas Parts
Shipping Weight 9.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.500m
Shipping Cubic 0.005000000m3
Unit Of Measure ea
