SKU: P70X210RENG

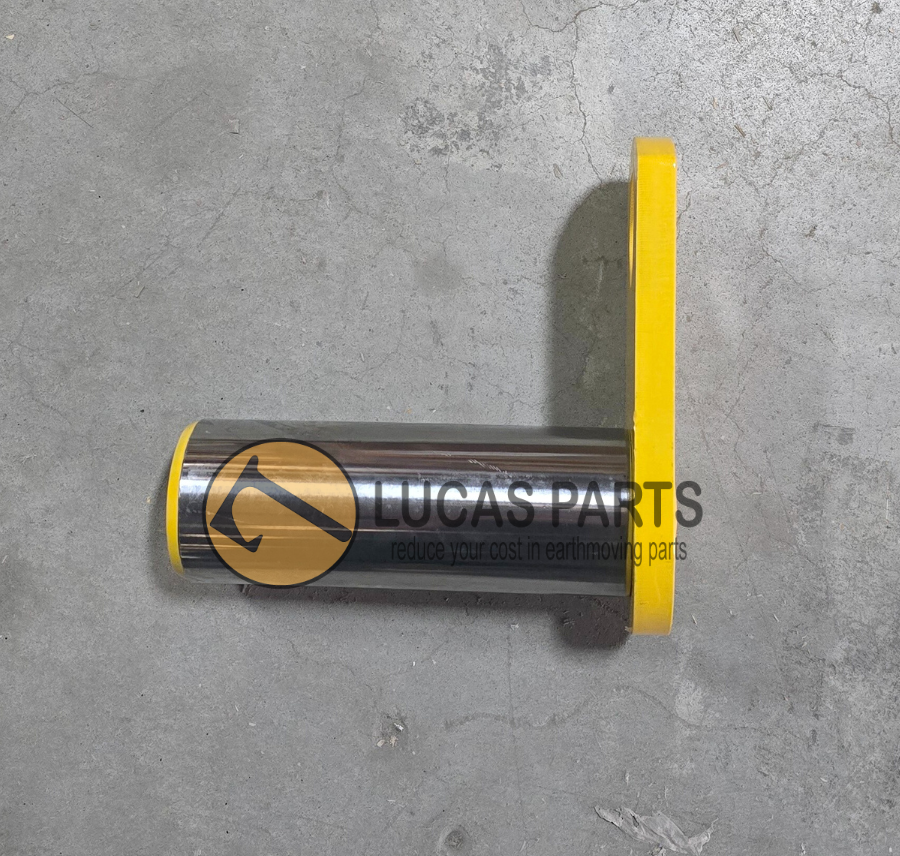

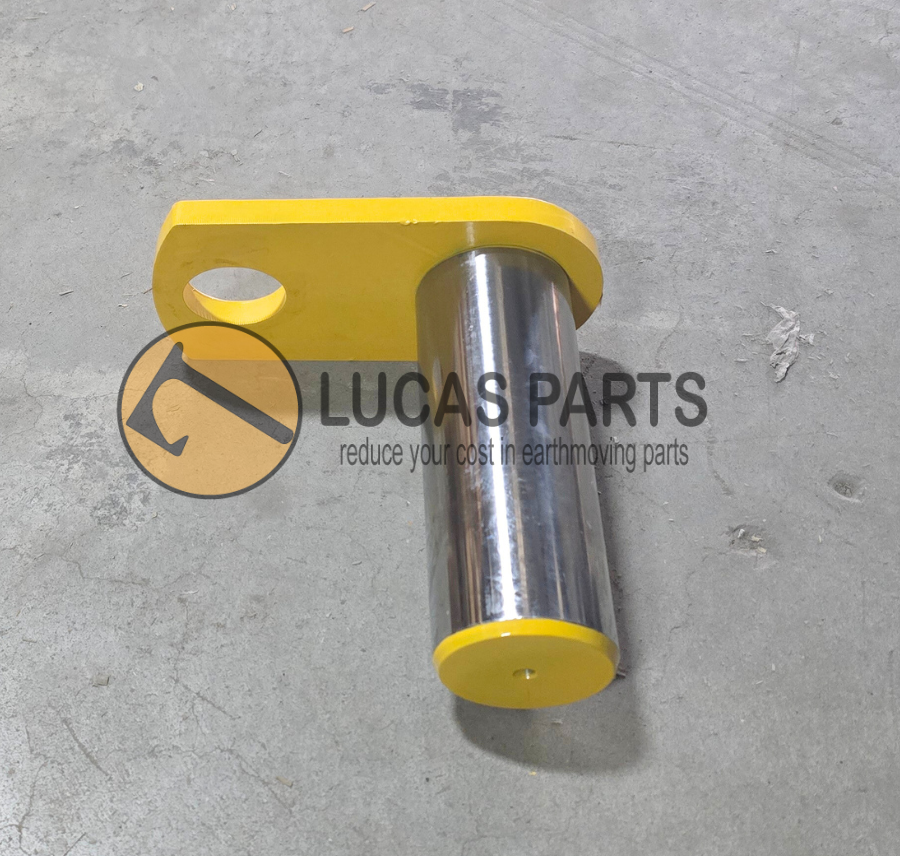

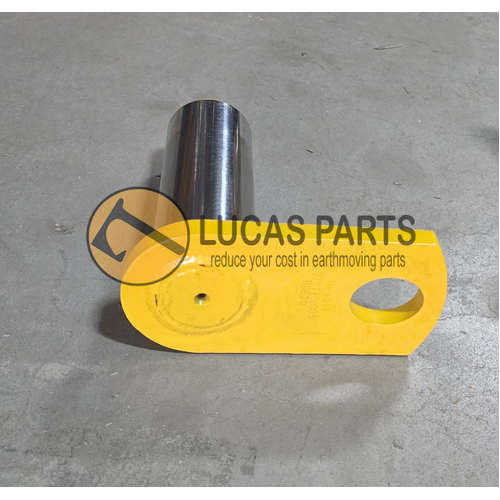

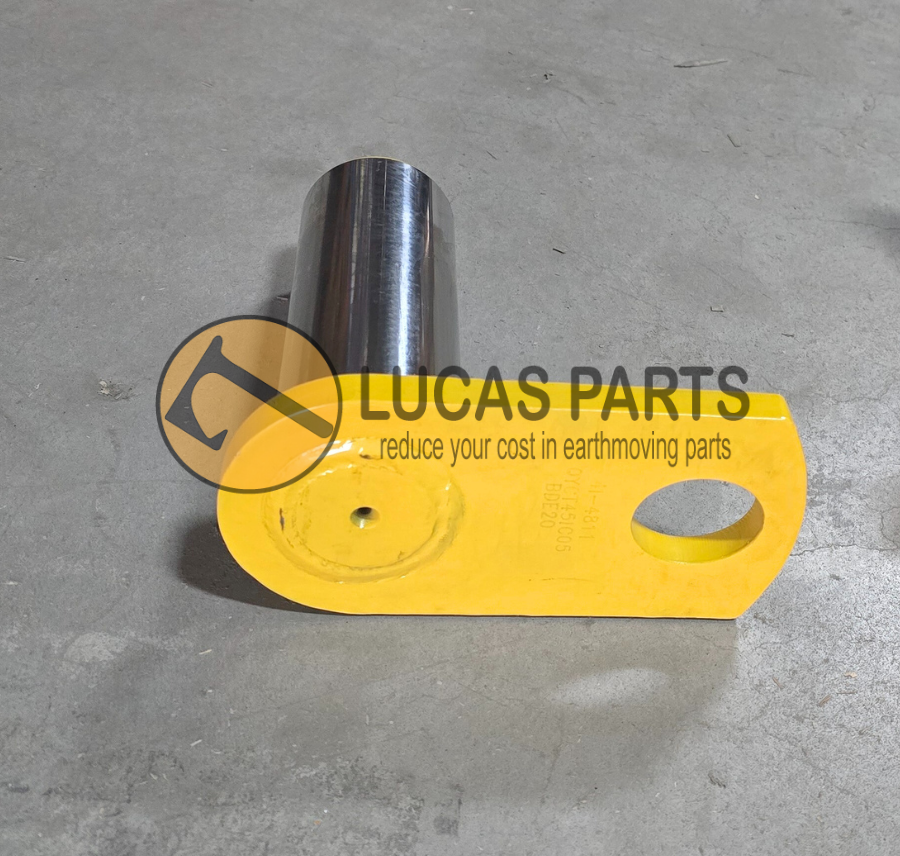

Excavator Pin 70*210mm ID*TL Bucket Lift Ram Pins (P7) CAT320 320D 323 PN 4I-4811

No Grease Hole Solid Pin

$240.00



Description

Compatible with the following equipment:

Caterpillar

  • 320-A 315, 315B, 315B L, 315C,
  • 315D L, 316E L, 317, 317B LN, 318D L,
  • 318D2 L, 318E L, 320 L, 320B, 320B L,
  • 320C, 320C FM, 320C L, 320D, 320D FM,
  • 320D GC, 320D L, 320D LN, 320D LRR,
  • 320D RR, 320D2, 320D2 GC 320-A L
  • 323F SA 320 L 320 GC 320-A N 320N
  • 321B

Komatsu Part Number: 4I-4811 4I4811



Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 376 Mpa; it is widely used in machinery parts.









SKU P70X210RENG
Brand Lucas Parts
Shipping Weight 11.0000kg
Shipping Width 0.120m
Shipping Height 0.120m
Shipping Length 0.350m
Shipping Cubic 0.005040000m3
Unit Of Measure ea
