SKU: P70X530M1

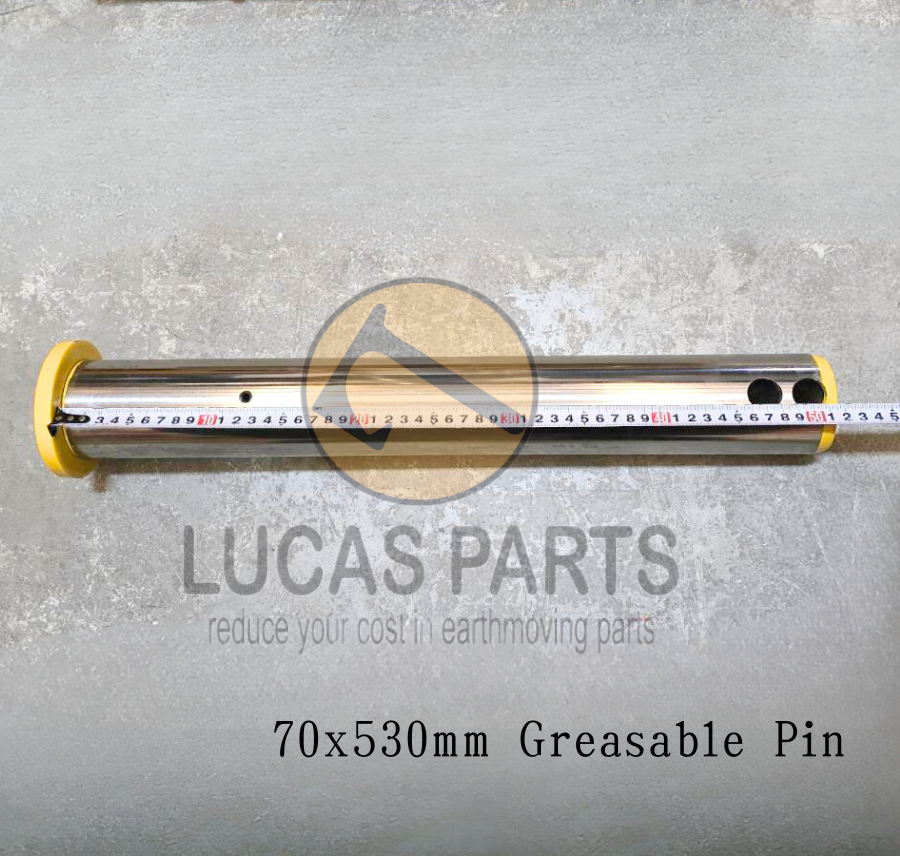

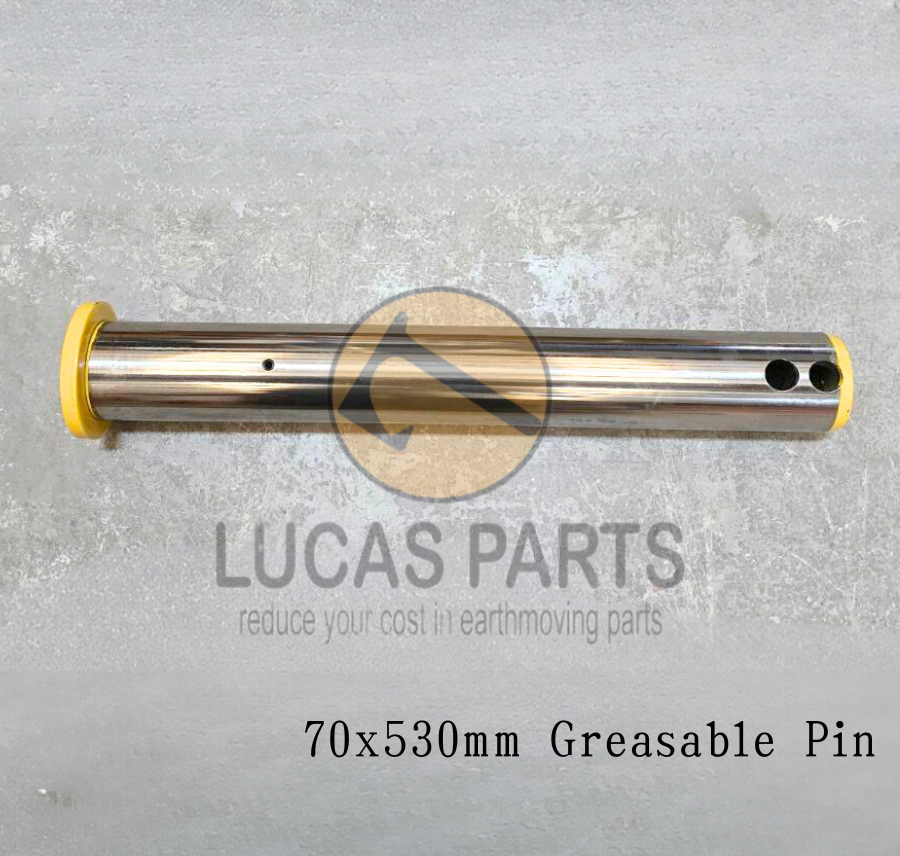

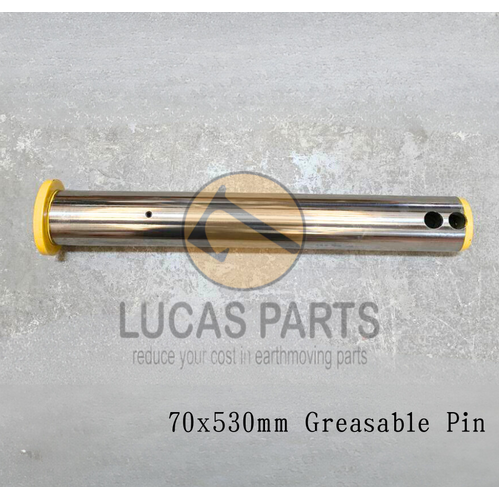

Excavator Pin 70*530mm ID*TL One Grease Hole

LH1= 500mm, LH2= 470mm, GH= 125mm

$265.00



Description





Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 404 Mpa; it is widely used in machinery parts.









SKU P70X530M1
Brand Lucas Parts
Shipping Weight 19.0000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.600m
Shipping Cubic 0.024000000m3
Unit Of Measure ea
