SKU: P80X260RENGLF

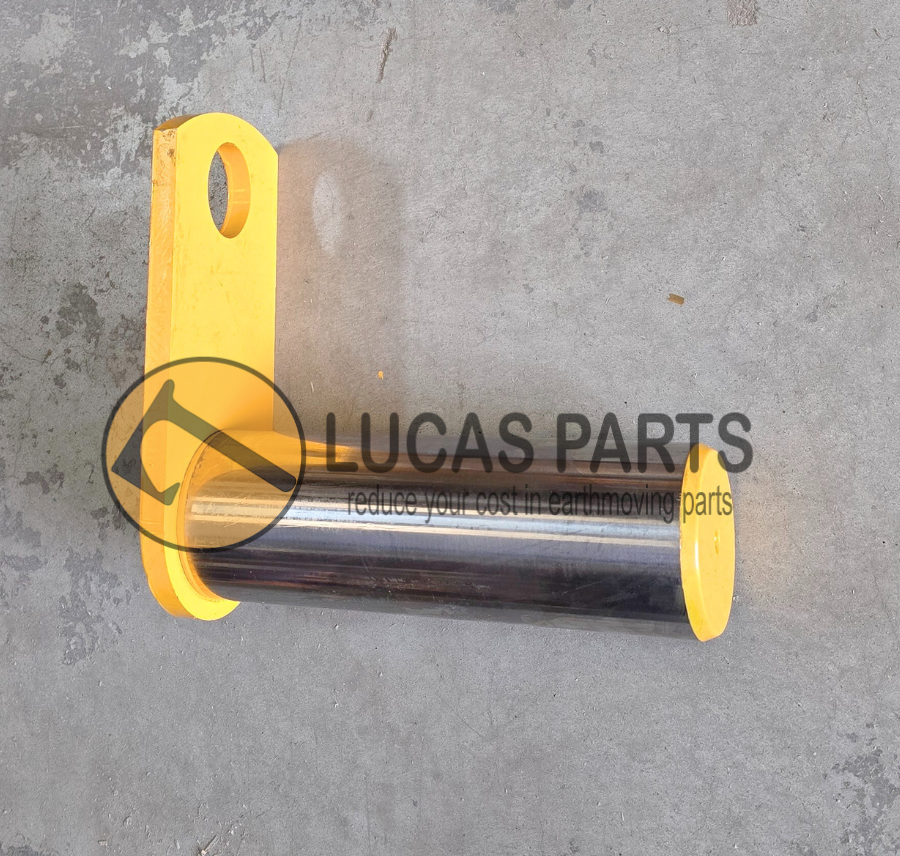

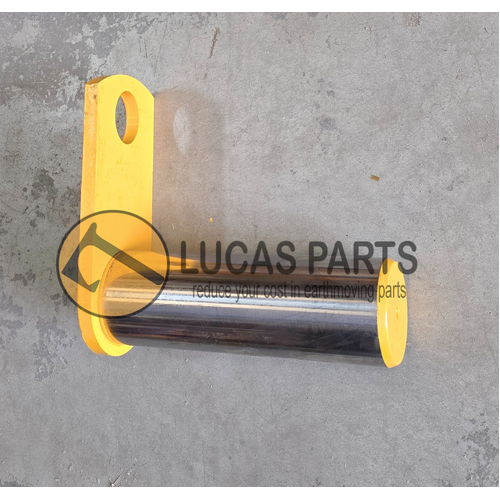

Excavator Pin 80*260mm ID*TL Bucket Lift Ram Top Pin (P7) CAT 330 336 340E 340D2L PN 5I-3299

No Grease Hole Solid Pin

$265.00



Description

Compatible with the following equipment:

Caterpillar

EXCAVATOR

  • 325C, 328D LCR
  • 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330D, 330D FM, 330D L, 330D LN
  • 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F L
  • 340D L, 340D2L





Part Number : 5I-3299

Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 376 Mpa; it is widely used in machinery parts.









SKU P80X260RENGLF
Brand Lucas Parts
Shipping Weight 13.5000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.350m
Shipping Cubic 0.021000000m3
Unit Of Measure ea
