SKU: P80X270TNG

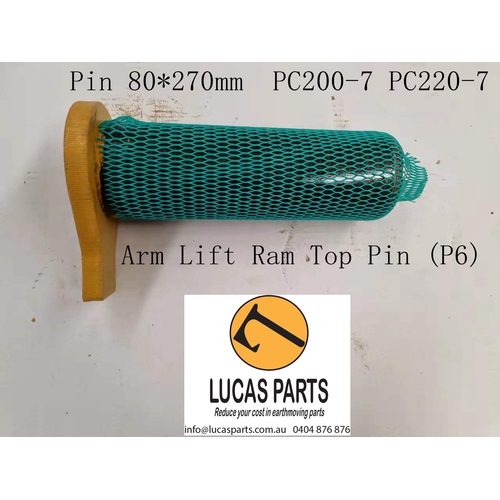

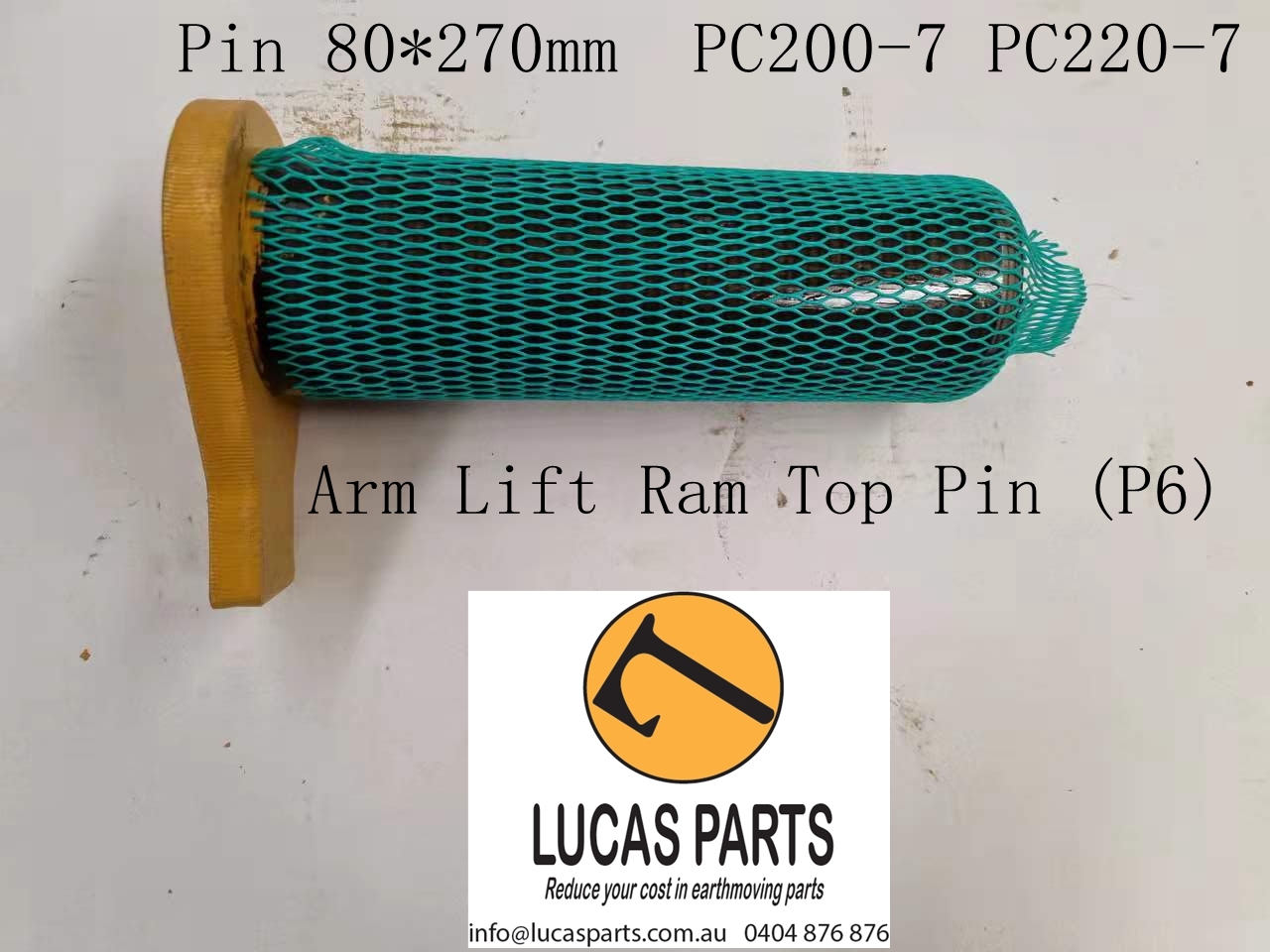

Excavator Pin 80*270mm ID*TL Arm Lift Ram Top Pin (P6) PC200-7 PC220-7 PN 20Y-70-31160

$270.00



Description

PIN Measurement Diagram



Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 381 Mpa; it is widely used in machinery parts.









SKU P80X270TNG
Brand Lucas Parts
Shipping Weight 15.0000kg
Shipping Width 0.150m
Shipping Height 0.150m
Shipping Length 0.350m
Shipping Cubic 0.007875000m3
Unit Of Measure ea
