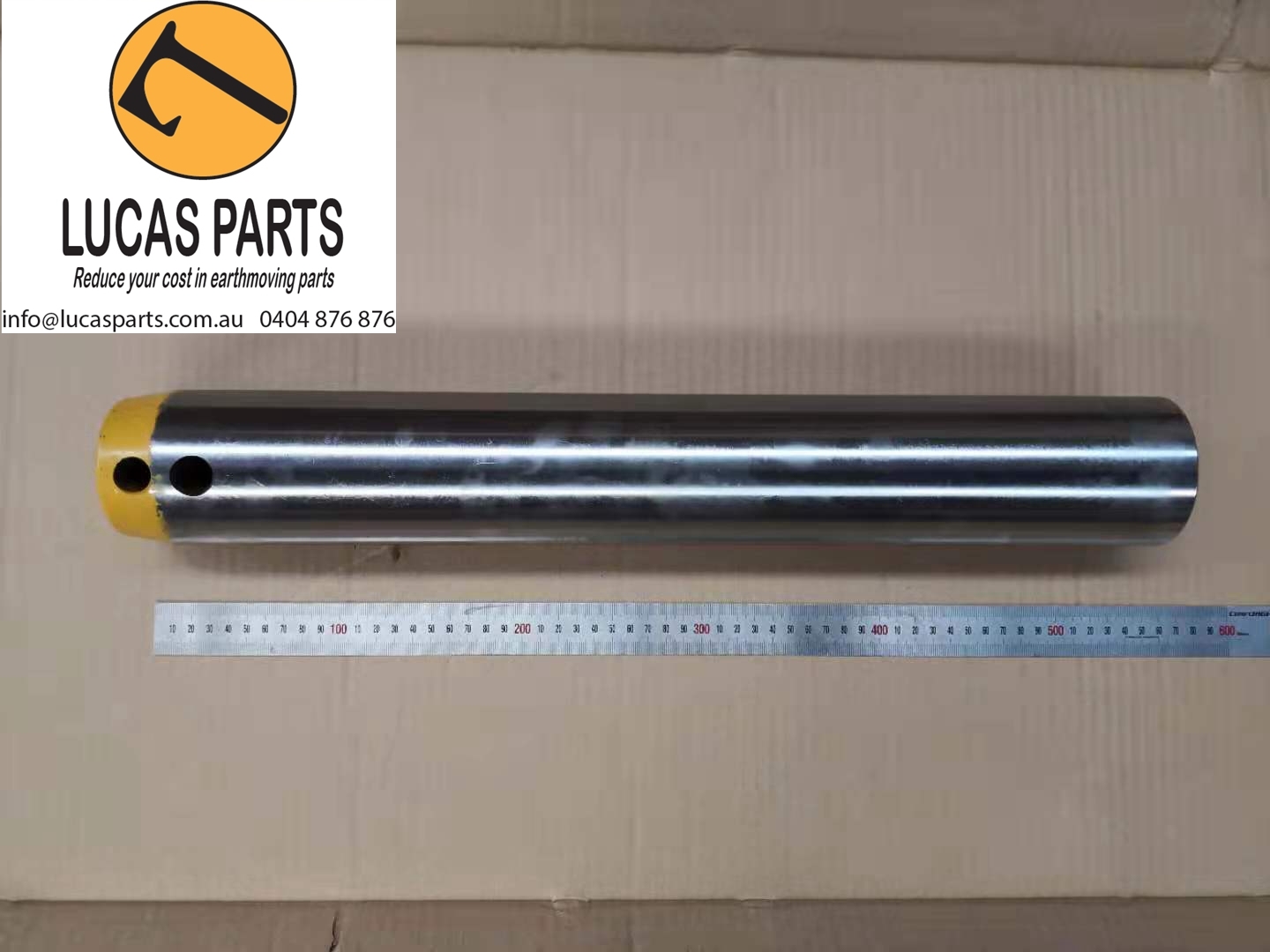

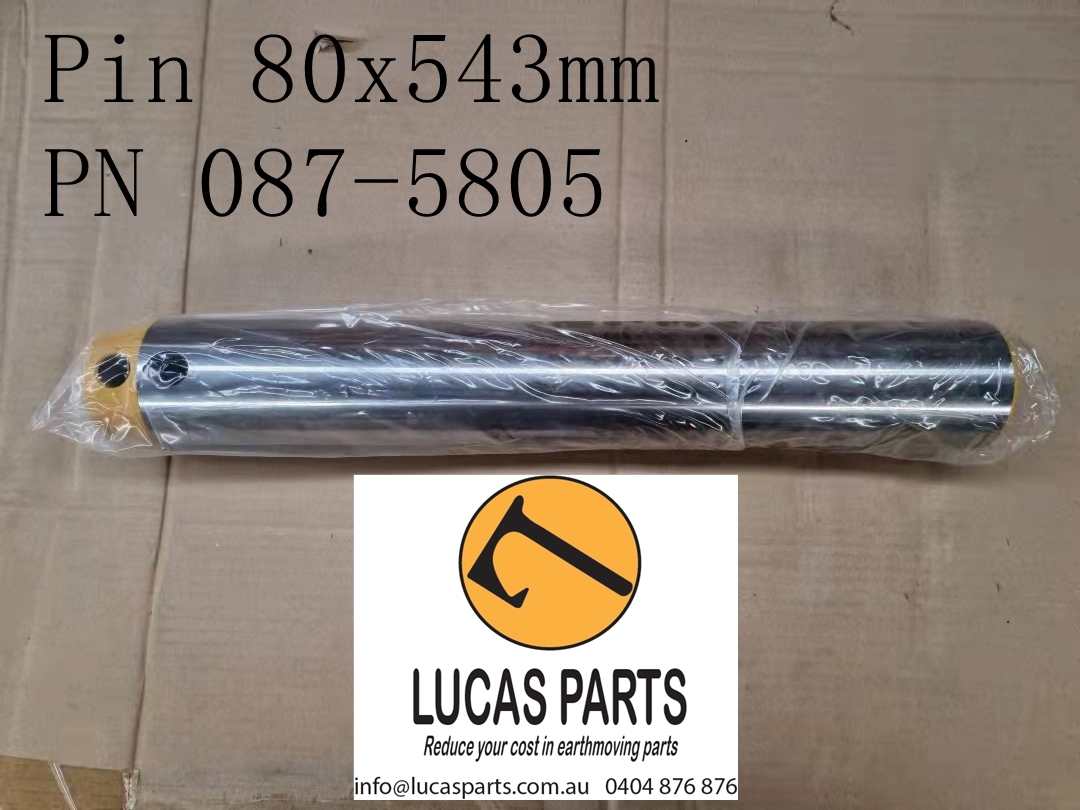

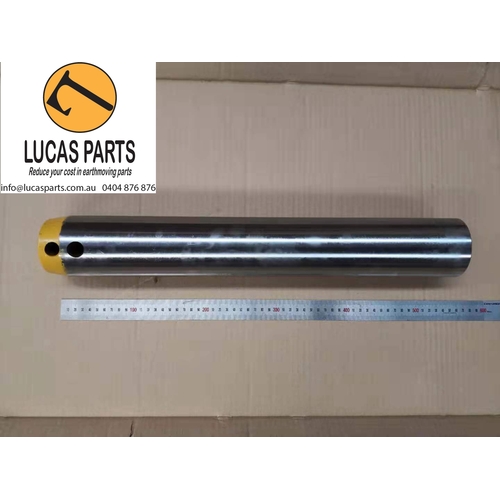

Excavator Pin 80*543mm OD*TL Bucket Pin Crowd Link Pin CAT320 (P9 P11) PN 087-5805

Compatible with the following equipment:

CATERPILLAR

WHEELED EXCAVATOR

• M318 M318C M318D M318C MH M318D MH M320 M320D2 M320F M322C M322D M322D MH M322D2 M322D2 MH M322F M324D2 MH

TRACK-TYPE SKIDDER

• 517 527

EXCAVATOR

• 319D L 318B 318B N 318C 319D 319D LN 320 320 GC 320 GX 320 L 320-A 320-A L 320-A N 320-A S 320B 320B FM LL 320B L 320B LL 320B LU 320B N 320B U 320C 320C FM 320C L 320D 320D FM 320D GC 320D L 320D LN 320D LRR 320D RR 320D2 320D2 FM 320D2 GC 320D2 L 320D3 320D3 GC 320E L 320E 320E LN 320E LRR 320E RR 320F L 320GX 320N 321B 321C 321D LCR 322 L 322 LN 322-A 322-A L 322-A LN 322-A N 322B 322B L 322C 322C FM 322N 323 323 GC 323 GX 323D 323D L 323D LN 323D SA 323D2 323D2 L 323D3 323E L 323E LN 323F 323E SA 323F L 323F OEM 323GC 324D 324D FM 324D L 325 325 L 325 LN 325-A 325-A FM L 325-A L 325-A LN 325B L 325C 325C FM 325C L 325D 325D FM 325D FM LL 325D L 325F LCR 325F 330B L 330D L 336D L 340 345C L 352 E240C EL240C M318 M325D L MH

MATERIAL HANDLER

• M325D L MH M325D MH MH3022 MH3024 MH3026

FOREST PRODUCTS

• 322C 538 558

Part Number: 087-5805

Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.

Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.
