SKU: P80X680MBRT

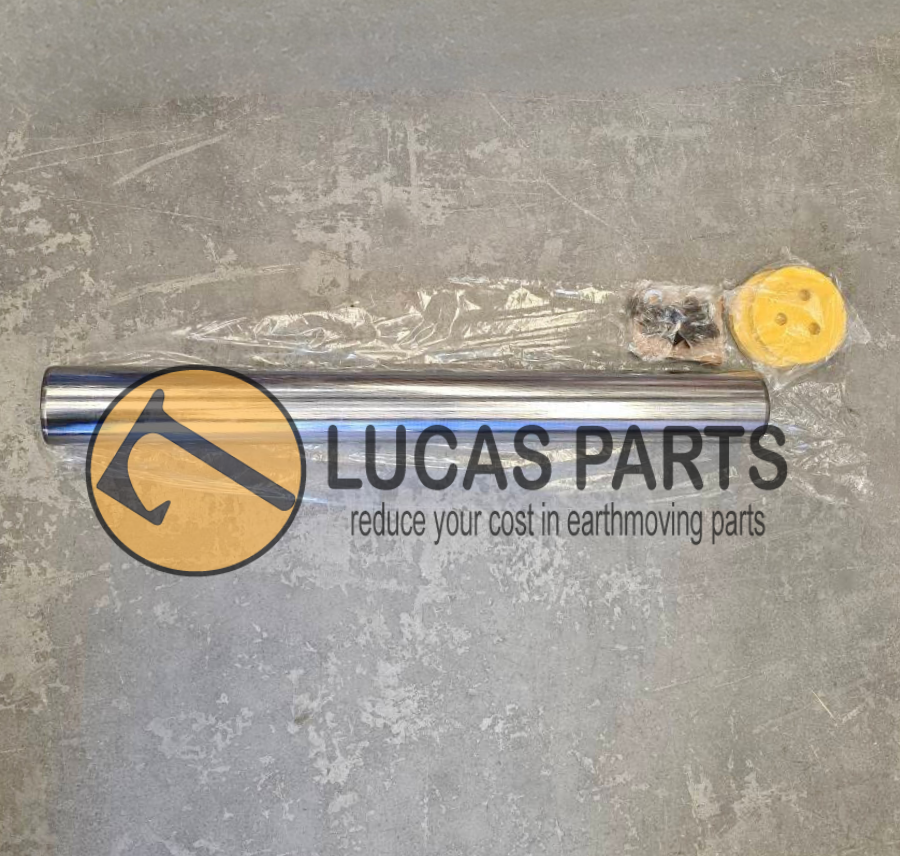

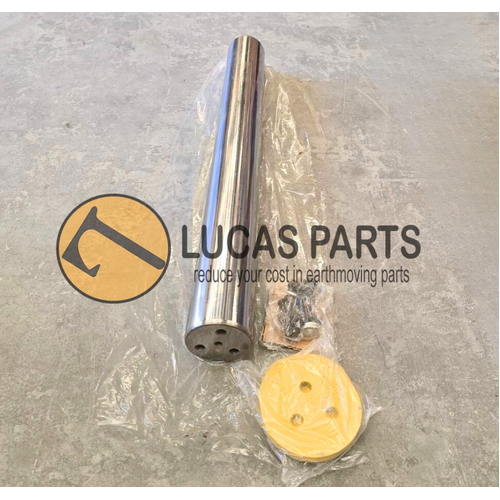

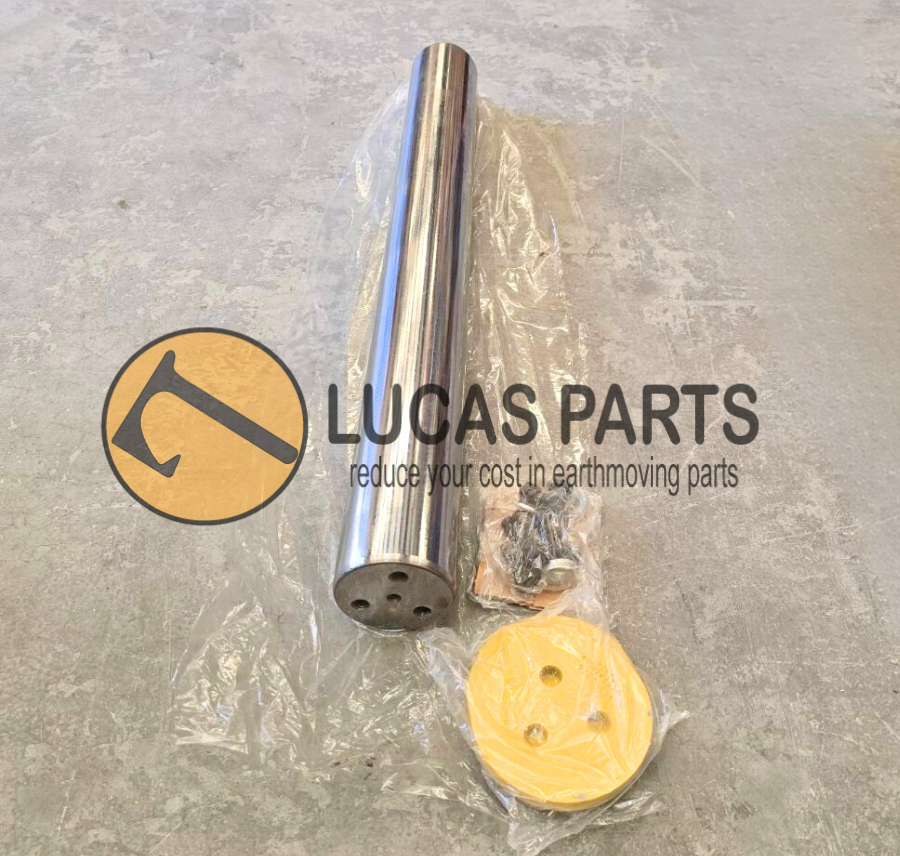

Excavator Pin 80*680mm ID*TL Boom Lift Ram Top Pin (P4) CAT 315 318D PN 180-7755

Straight Pin with Mounting Flanges

$400.00



Description

Compatible with the following equipment:



Caterpollar

EXCAVATOR

  • 318F L 318E L 318D L 315D L
  • 316F L 316E L 317 318D2 317 GC
  • 318 GC 315C 318D2 L 318F 316F



Part Number: 180-7755

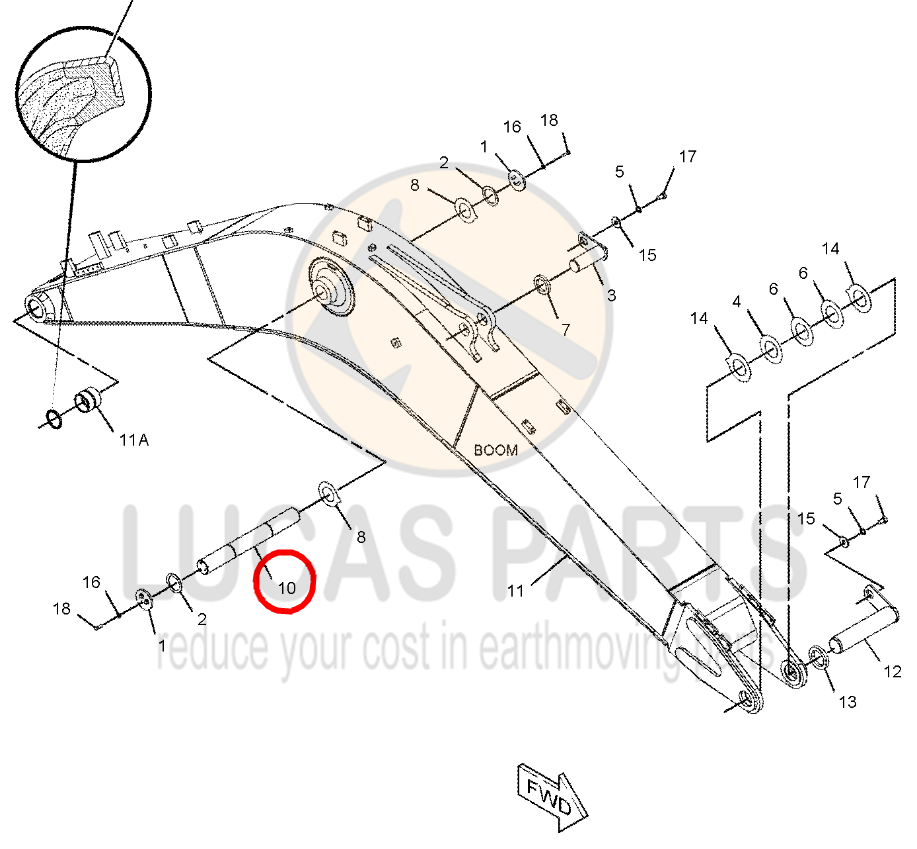

Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 417 Mpa; it is widely used in machinery parts.









SKU P80X680MBRT
Brand Lucas Parts
Shipping Weight 38.0000kg
Shipping Width 0.350m
Shipping Height 0.200m
Shipping Length 0.900m
Shipping Cubic 0.063000000m3
Unit Of Measure ea
