SKU: P90X320WNG1B

Excavator Pin 90*320mm ID*TL Bucket Lift Ram Top Pin (P7) SK330 SK350-8 PN LC12B01461P1

$350.00



Description

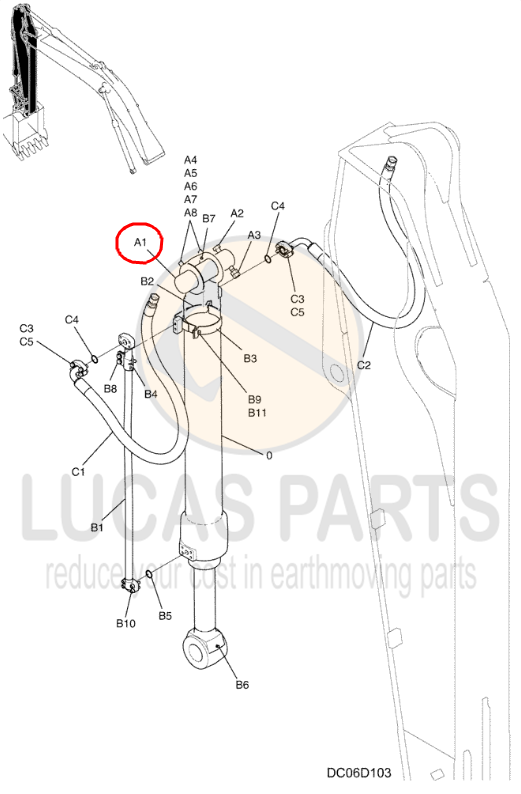

Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 376 Mpa; it is widely used in machinery parts.









SKU P90X320WNG1B
Brand Lucas Parts
Shipping Weight 18.0000kg
Shipping Width 0.150m
Shipping Height 0.150m
Shipping Length 0.400m
Shipping Cubic 0.009000000m3
Unit Of Measure ea
