SKU: P90X790MBRT

Excavator Pin 90*790mm ID*TL Boom Lift Ram Top Pin (P4) CAT 324 326D PN 180-7752

Straight Pin with Mounting Flanges

$650.00



Description

Compatible with the following equipment:



Caterpollar

EXCAVATOR

  • 322B LN, 322C, 322C FM
  • 324D, 324D FM, 324D L, 324D LN
  • 324E, 324E L, 324E LN
  • 326D L 326D2 L



Part Number: 180-7752

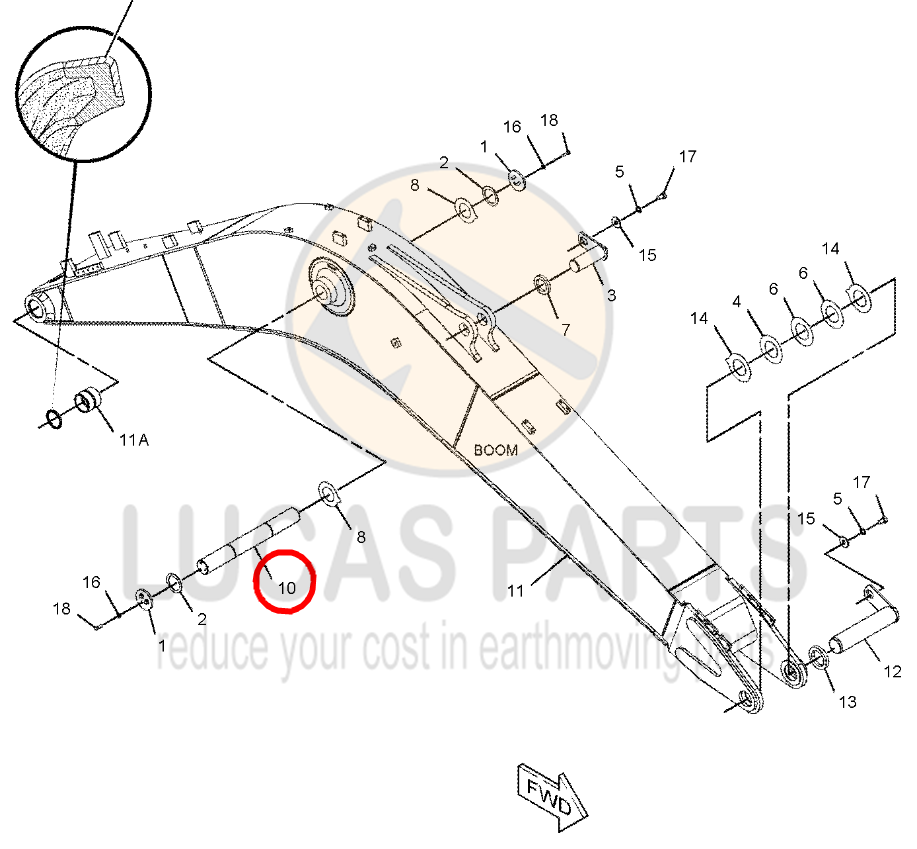

Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 417 Mpa; it is widely used in machinery parts.









SKU P90X790MBRT
Brand Lucas Parts
Shipping Weight 90.0000kg
Shipping Width 0.350m
Shipping Height 0.300m
Shipping Length 1.200m
Shipping Cubic 0.126000000m3
Unit Of Measure ea
