SKU: FDU03101

Final Drive VIO30 VIO35 U35 U35S U35-3 U35-4 KX91-3 EX30 AX30 CAT303CR 303.5 SK30 B27 B22 (9) 190mm

(9) 190mm RC411-61804, RC411-61808, RC441-61600

RRP $3,300.00 SAVE $500.00 (15%)
$2,800.00



Part Number: RC411-61804, RC411-61808, RC441-61600

Description

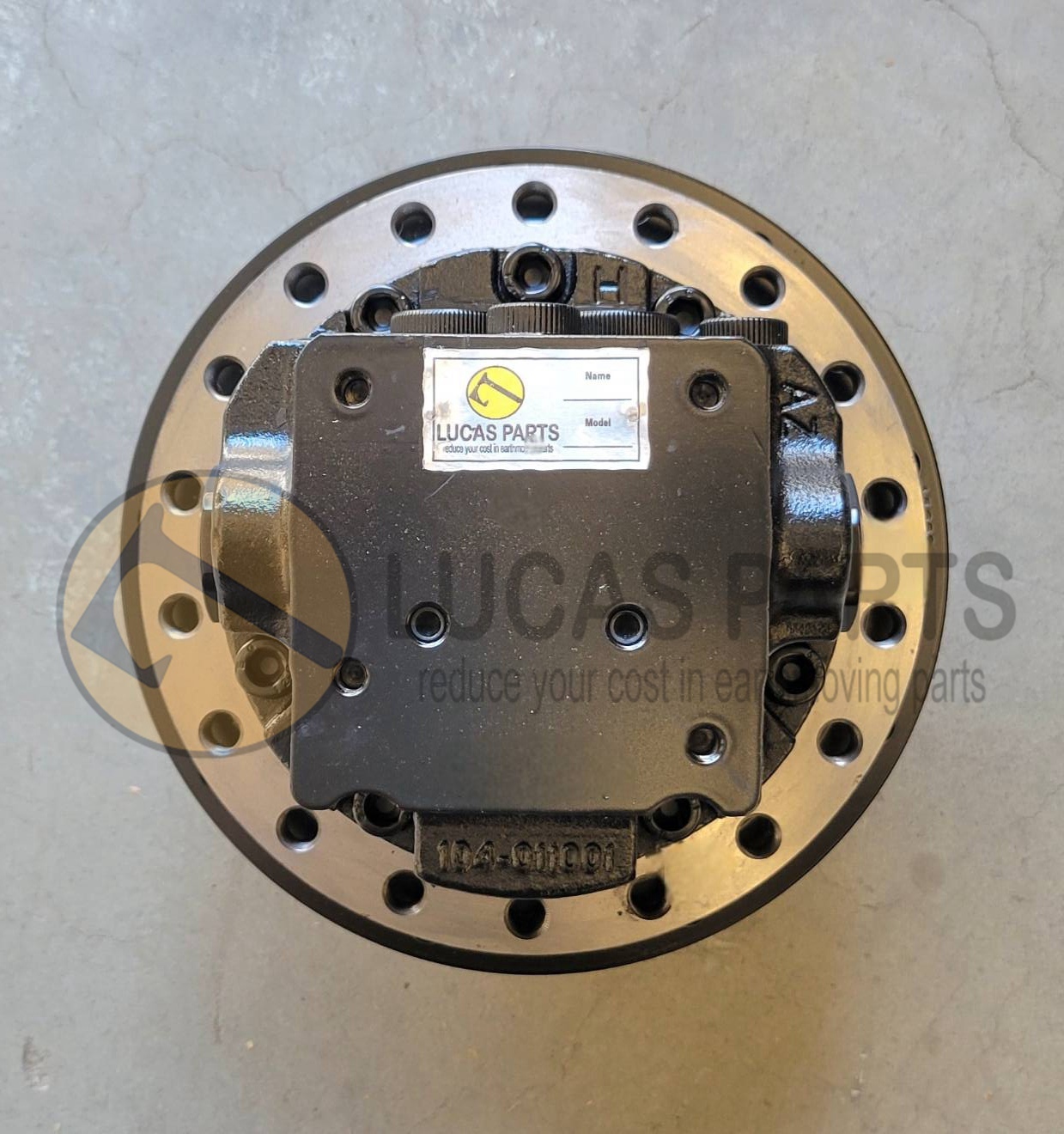

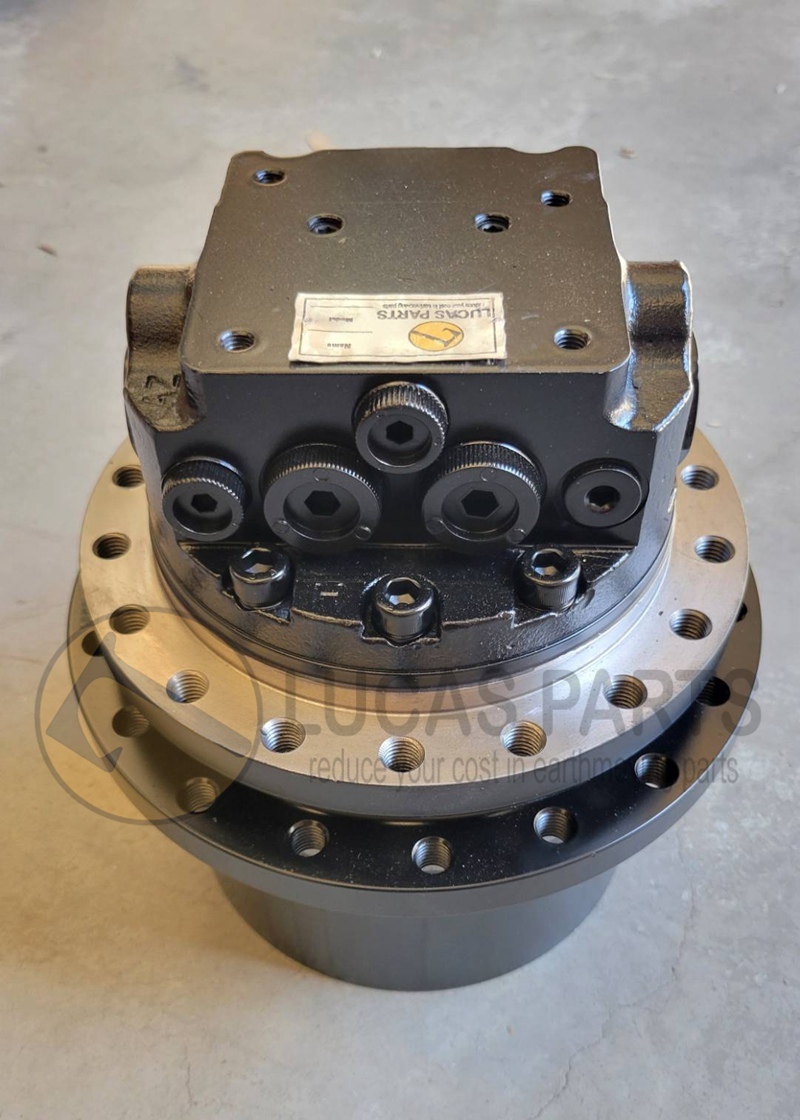

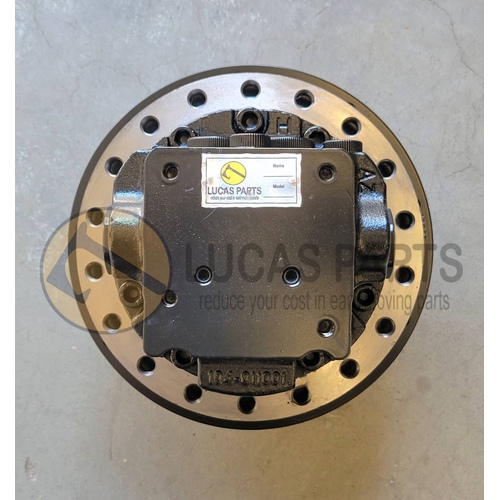

Aftermarket Brand New Final Drive comes with one year manufactuer warranty. Fully assembled hydraulic Travel Motor and reduction/planetary gearbox, filled with oil, ready to bolt on and go.



  (MM)   (MM)
   A     192    B    165
   C     190    D     215
   E      50    M      9  (Bolt M12)
   N     9 (Bolt M12)











Excavator Final Drive Unit

Drive Motor Final Drive Lucas Parts





Specifications

Travel Motor Specifications
Input Flow 30 L/min 30 L/min 30 L/min 40 L/min 40 L/min
Motor Displacement
18/12 cc/r 18/10 cc/r 18/10 cc/r 23.2/15.4 cc/r 23.2/15.4 cc/r
Working Pressure 210 bar 210 bar 210 bar 210 bar 210 bar
2-Speed
Switching Pressure
20~70 bar 20~70 bar 20~70 bar 20~70 bar 20~70 bar
Ratio Options 48.6 53 42 48.6 53
Max. Output Torque 2900 N.m 3188 N.m 2520 N.m 3770 N.m 4100 N.m
Max. Output Speed 68.5 rpm 57 rpm 72 rpm 53.4 rpm 49 rpm




SKU FDU03101
Shipping Weight 55.0000kg
Shipping Width 0.350m
Shipping Height 0.450m
Shipping Length 0.350m
Shipping Cubic 0.055125000m3
Unit Of Measure ea
