SKU: KITBM06101

Pin & Bush Kits Position 12 Kubota KX161-3 U45-3 U45-3S U45-3ST KX121-3 King Post/Swing Bracket Pin and Bushes Kit

$790.00



Description

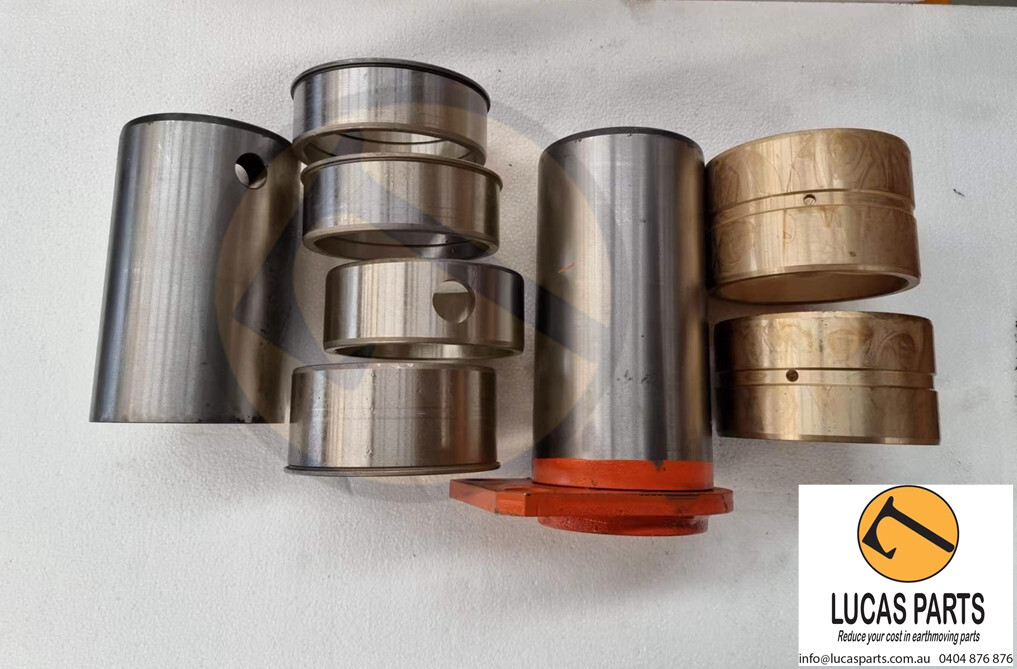

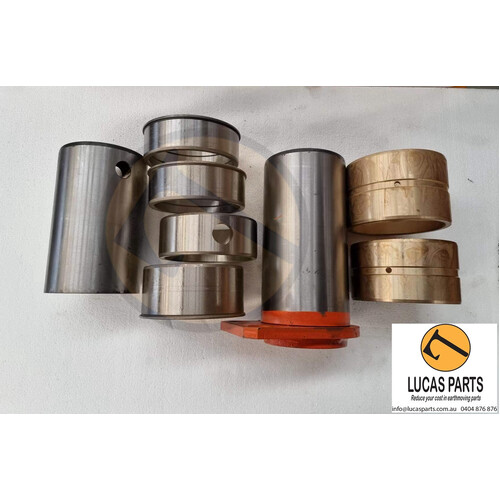

The Pin and Bush Kit includes:

    Pin:

  •         100  RC411-66454    x1 pc
  •         180  RC411-66463    x1 pc

    Bush:

  •         050  RC411-66320    x1 pc
  •         060  RC411-66332    x1 pc
  •         070  RC411-66370    x1 pc
  •         080  RC411-66380    x1 pc
  •         020  RD411-41140    x1 pc
  •         030  RD411-41130    x1 pc

Compatible with the following equipment:

KUBOTA

  • KX161-3
  • KX121-3 (Note: Two brass bushes will be a little wider for KX121-3)
  • U45-3
  • U45-3S
  • U45-3ST

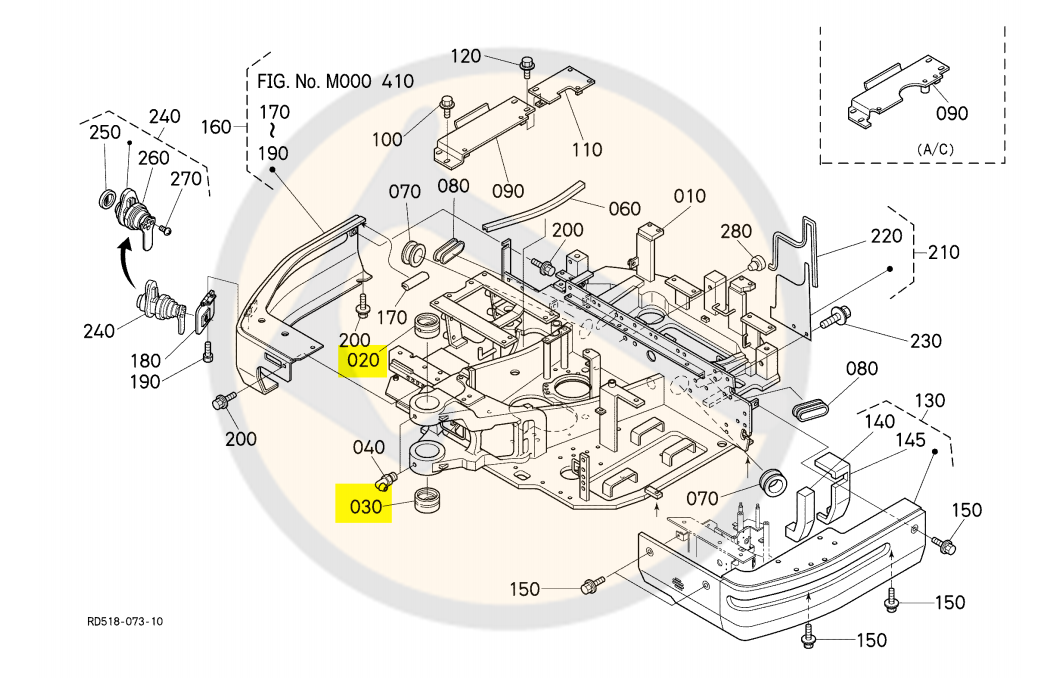

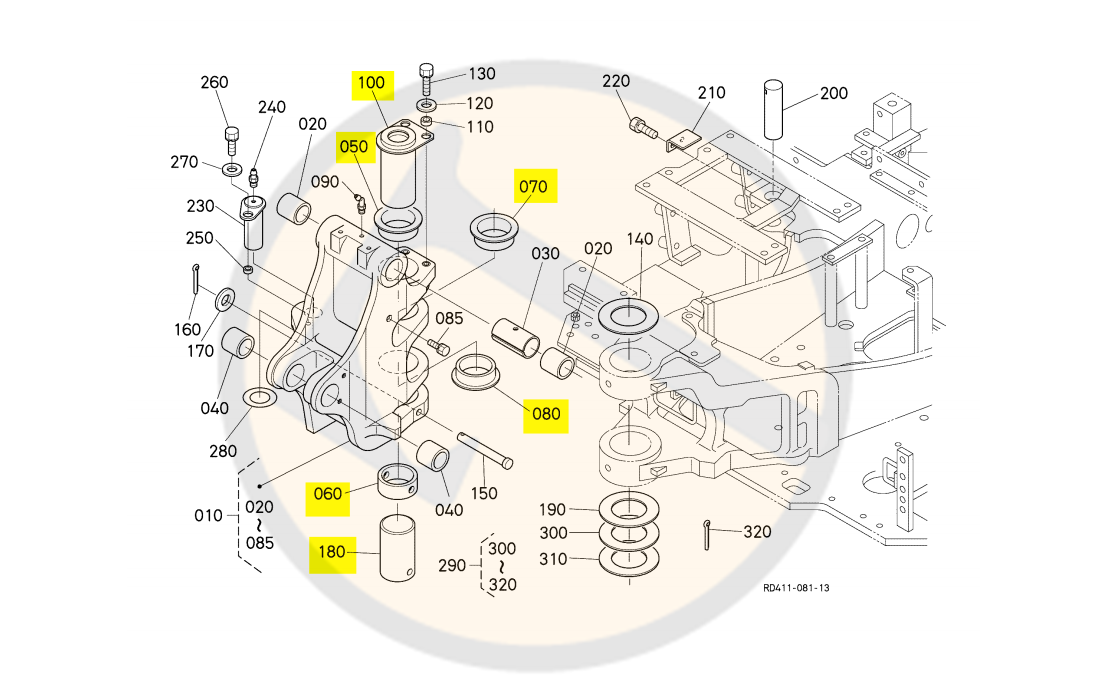

Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

SKU KITBM06101
Brand Lucas Parts
Shipping Weight 18.0000kg
Shipping Width 0.300m
Shipping Height 0.300m
Shipping Length 0.350m
Shipping Cubic 0.031500000m3
Unit Of Measure kit
