Radiator Hose - Upper | Radiator Piping | PC200-5 PC220-5 PN 206-03-51161

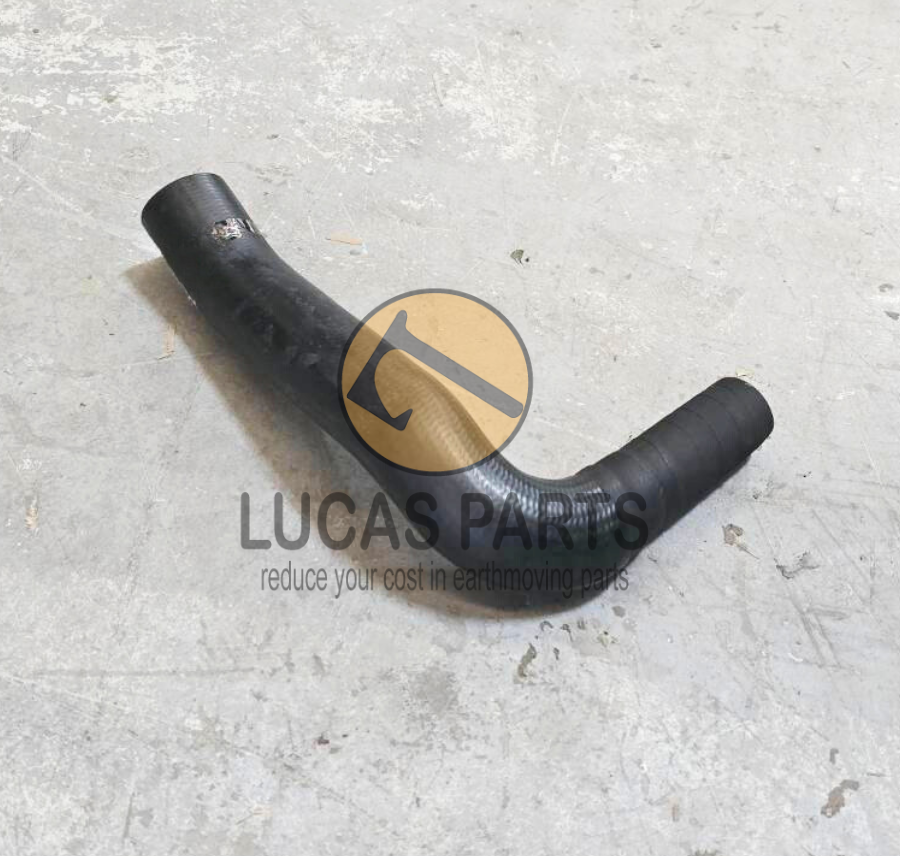

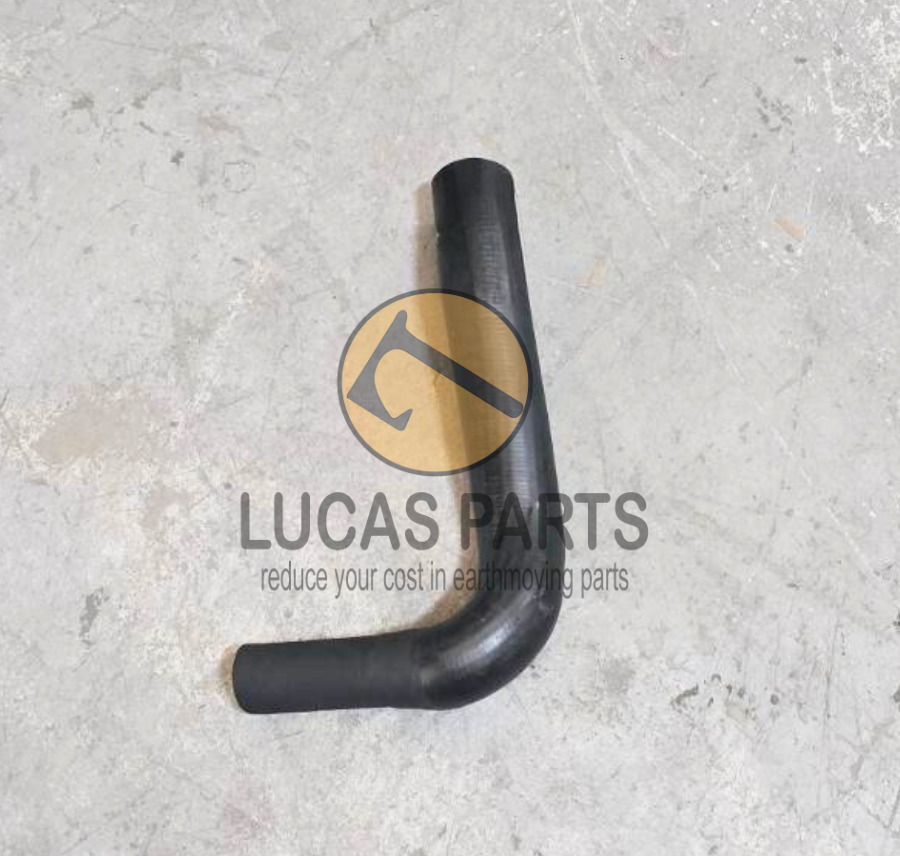

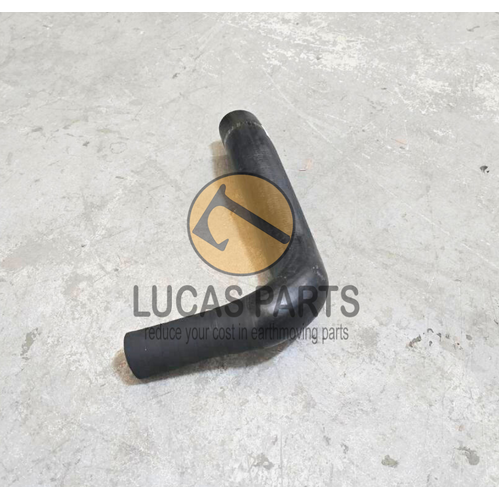

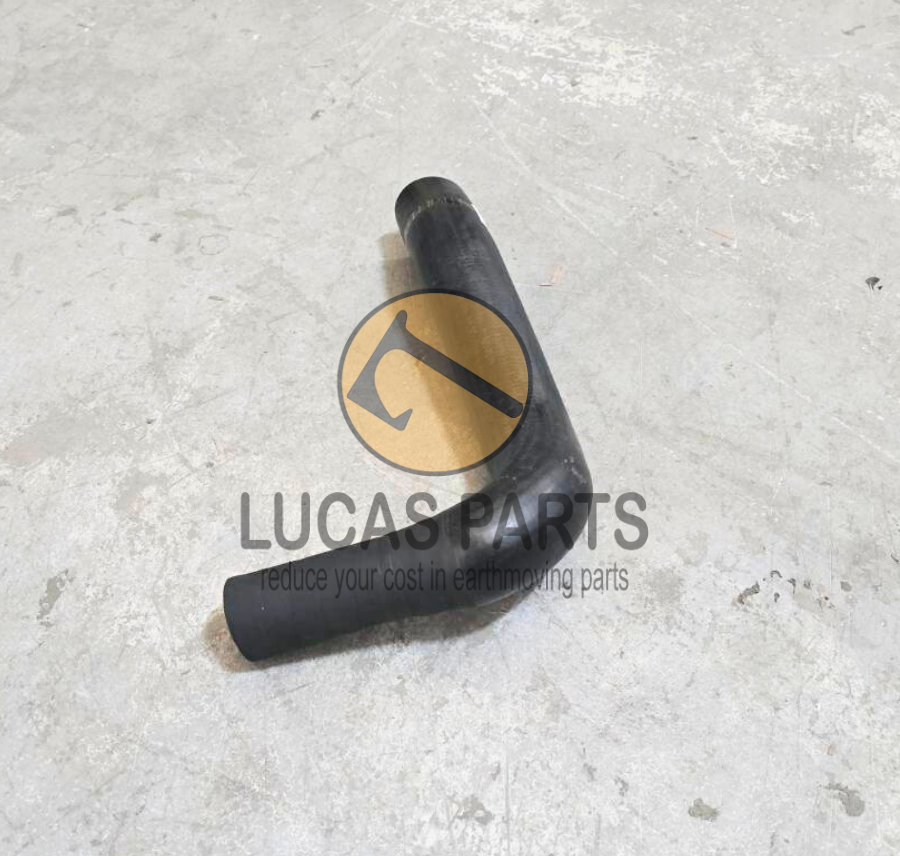

Radiator Hose - Upper PC200-5 PC220-5 PN 206-03-51161

This item comes with a 12-month warranty. Call us at 1300 987 300 if you have any questions about this item. As always, your satisfaction is guaranteed!

Description

Compatible with the following equipment:

Part Number: 206-03-51161

A radiator hose is a flexible tube that connects the engine to the radiator in a vehicle’s cooling system. Its primary function is to transport coolant between the engine and radiator to regulate the engine’s temperature and prevent overheating.

Types of Radiator Hoses:

    1.    Upper Radiator Hose:
    •    Connects the engine’s thermostat housing to the top of the radiator.
    •    Carries hot coolant from the engine to the radiator for cooling.
    2.    Lower Radiator Hose:
    •    Connects the bottom of the radiator to the water pump.
    •    Transports cooled coolant from the radiator back to the engine.

Materials:

Radiator hoses are typically made from durable, heat-resistant rubber or silicone to withstand:
• High temperatures from engine heat and coolant.
• Pressure fluctuations within the cooling system.

Signs of a Worn Radiator Hose:

    •    Cracks, bulges, or leaks.
    •    Soft, spongy, or brittle material.
    •    Coolant leakage near the hose connections.

Specifications

4D95LE-2A S/N 100005-UP » » PC60-7 S/N 45001-UP, PC60-7 S/N 45001-UP (For China), PC60-7 S/N 45001-UP (With Front Blade Spec.)
4D95LE-2A S/N 100005-UP » » PC60-7 S/N 45001-UP, PC70-7 S/N 45001-UP, BA100-1 S/N 1003-UP, PC60-7-B S/N 45001-UP, PC70-7-B S/N 45001-UP
4D95LE-2A S/N 100005-UP » » PC70-7 S/N 45001-UP, BA100-1 S/N 1003-UP, PC60-7-B S/N 45001-UP, PC70-7-B S/N 45001-UP, PC60-7 S/N 45001-UP
4D95LE-2B S/N 100005-UP » » PC78US-5 S/N 1001-UP (For North America), PC75UU-3 S/N 15001-UP
4D95LE-2B S/N 100005-UP » » PC78US-5 S/N 1001-UP, PC75UU-3 S/N 15001-UP
4D95LE-2C S/N 100005-UP » » PC78US-6 S/N 4001-UP (For North America), PC78US-6 S/N 4001-UP (For Norway), PC78UU-6 S/N 22001-UP
4D95LE-2C S/N 100005-UP » » PC78US-6 S/N 4001-UP, PC78UU-6 S/N 22001-UP
4D95LE-2C S/N 100005-UP » » PC78UU-6 S/N 22001-UP, PC78US-6 S/N 4001-UP
PC118MR-8 S/N F00003 AND UP
PC88MR-6 S/N F00003 AND UP
PC88MR-8 S/N A90001-UP
S4D95LE-3A-2 S/N 100001-UP » » PC78US-6 S/N 4001-UP (Overseas Version), PC78US-6 S/N 4001-UP (For North America),
PC78UU-6 S/N 22001-UP, PC78US-6 S/N 4001-UP (For Norway)
S4D95LE-3A-2 S/N 100001-UP » » PC78UU-6 S/N 22001-UP, PC78US-6 S/N 4001-UP
S4D95LE-3A-2A S/N 100001-UP » » PC78MR-6 S/N 1001-UP (For North America), PC78MR-6 S/N 1001-UP (For EU)
SAA4D95LE_5A S/N 500001-UP » » PC138US-8 S/N 20001-24509 (For EU), PC138US-8 S/N 20001-24509,
PC138USLC-8 S/N 20001-24509 (For North America)
SAA4D95LE_5A S/N 500001-UP » » PC138US-8 S/N 20001-UP
SAA4D95LE-3A-4M S/N 100001-UP » » PC128US-2-A S/N 9501-UP, PC138US-2-A S/N 4501-UP, PC138US-2-AT S/N 4501-UP,
PC128US-2-AC S/N 9501-UP, PC138US-2-AC S/N 4501-UP, PC128US-2-AT S/N 9501-UP
SAA4D95LE-3A-4W S/N 101537-UP » » PC138US-2 S/N 4501-UP (Overseas Version), PC138USLC-2 S/N 1501-UP (SAA4D95LE-3 (TIER 2) Eng. Installed), PC138US-2E S/N 4501-UP (For EU)
SAA4D95LE-3B-4A S/N 100001-UP » » PC130-7K S/N 70001-UP
SAA4D95LE-3B-4A S/N 101537-UP » » PC130-7 S/N 70001-UP (For Australia)
SAA4D95LE-5 S/N 501795-UP (For PC130-8) »
SAA4D95LE-5 S/N 501795-UP (For PC130-8) » » PC130-8 S/N 80001-UP
SAA4D95LE-5 S/N 501795-UP (For PC130-8) » » PC130-8 S/N C30001-UP
SAA4D95LE-5A S/N 500001-UP (For PC138US-8/PC138USLC-8) » » PC138US-8 S/N 24510-UP (EU Spec.), PC138US-8 S/N 24510-UP,
PC138USLC-8 S/N 24510-UP (North America Standard Machine)
SAA4D95LE-5D S/N 26501795-UP (For PC130-8) » » PC130-8 S/N B10001-UP
SAA4D95LE-5D S/N 501795-UP (For PC130-8) » » PC130-8 S/N 80001-UP
SAA4D95LE-5D S/N 502660-UP (For PC130-8) » » PC130-8 S/N C30001-UP
SAA4D95LE-5E S/N 502711-UP (For PC88MR-8) » » PC88MR-8 S/N 5001-UP (North America Spec.), PC88MR-8 S/N 5001-UP (EU Spec.),
PC88MR-8 S/N 5001-UP
SAA4D95LE-5E S/N 502711-UP (For PC88MR-8) » » PC88MR-8 S/N 5001-UP, PC88MR-8 S/N 5001-UP (North America Spec.),
PC88MR-8 S/N 5001-UP (EU Spec.)
SAA4D95LE-5G S/N 504574-UP (For PC78US-8/PC78UU-8) » » PC78US-8 S/N 15001-UP (EU Spec.), PC78UU-8 S/N 15001-UP,
PC78US-8 S/N 15001-UP (North America Spec.), PC78US-8 S/N 15001-UP
SAA4D95LE-5G S/N 504574-UP (For PC78US-8/PC78UU-8) » » PC78US-8 S/N 15001-UP (North America Spec.), PC78US-8 S/N 15001-UP,
PC78US-8 S/N 15001-UP (EU Spec.), PC78UU-8 S/N 15001-UP
PW118MR-8 S/N F00003 AND UP
PW98MR-6 S/N F00003-Up
PW98MR-8 S/N F80003 AND UP

SKU	LPRH10001
Brand	Lucas Parts
Shipping Weight	2.0000kg
Shipping Width	0.200m
Shipping Height	0.150m
Shipping Length	0.400m
Shipping Cubic	0.012000000m3
Unit Of Measure	ea
